Applied Measurements Ltd. - PRODUCT NEWS







LCI Junction Box delivers continuous Fault Monitoring and Immediate Load Cell Diagnostics

LCI junction box is available in less than 1 week!

Connect up to 4 load cells to the LCI junction box and it will give you continuous fault monitoring and immediate load cell diagnostics. We reveal the 7 ways this LCI junction box promises to save you money.

FACTS:
1. Continuous Monitoring of Individual Load Cells
2. Immediate Alarm Activation when Faults Detected
3. Instant Fault Diagnostics
4. Increased Safety
5. Equipment Failure Downtime Reduced
6. Avoids Batch Wastage and Overflow
7. 5V Supply Option = Lower Power Consumption

Download the Datasheet >>

Continuous Monitoring
The intelligent LCI junction box delivers continuous enhanced load cell alarm and fault monitoring for up to 4 load cells. This instant and constant fault monitoring means problems are detected immediately, increasing production safety and limiting costly downtime.

Immediate Fault Diagnostic
What's more, it's fantastic for multi-load cell applications as it monitors each load cell independently and tells you which load cell has a fault and exactly what the fault is. This allows you to switch out the faulty load cell quickly for fast repairs and also prevents batch wastage and overflow due to undetected load cell and cable faults.

The LCI junction box not only continually monitors the load cells it also acts as a summing junction box, summing the connected load cells. You can select the number of load cells easily on the display.

New Lower Power Consumption
The LCI junction box doesn't come with any power connections as it uses the same excitation supply of the connected load cells. Plus, it now supports both 5V and 10V supply requiring even less power from the connected load cell.

Now We've Told You the Ways It Will Save You Money Let's Reveal the How

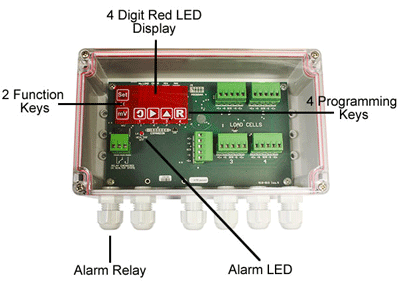

The red 4 digit LED display shows you which load cell is at fault and why.
When the system is functioning correctly the red 4 digit LED display will show "good". If an error is detected the display will show a code telling you which load cell is at fault and what the fault is.

The Key Faults Displayed Are:
·
o Load Cell Error Detection
o Load Cell Out of Balance
o Excitation Voltage Drop or Increase
o Open Load Cells or Load Cell Short Circuit
o Bridge Imbalance from an Internal Load Cell Fault

Alarm Options
There is an alarm LED on the LCI junction box board that lights up when a fault is detected in the system. There is also a relay output to drive an alarm to quickly alert engineers to a fault with the system.



Where Can I Buy It and How Much Will It Cost Me?

The LCI junction box can be yours in less than 1 week for £198 (exc VAT). Contact us to buy one now.


About Applied Measurements Ltd
Applied Measurements Limited offers a comprehensive selection of transducers based on strain gauge technology. Our product range includes sensors to measure load, pressure, torque and displacement. In addition, a custom transducer design service and strain gauge bonding facilities are also available.
To support the transducer range, a variety of analogue and digital instrumentation is available including high resolution, high speed and RS232/485 equipped signal conditioners and indicators, as well as portable battery powered indicators with integral data-logging, enabling us to offer complete systems with calibration traceable to UKAS standards.
In addition to our comprehensive range of 'standard' transducers, we also have the capability to design, develop and manufacture custom devices to meet specific needs. Our expertise is based on bonded strain gauge technology, which is carried across our complete line of transducers. Our involvement in your project can be at any stage, from development and design, through prototypes, testing and into full production.

For more information, please contact :-

Applied Measurements Ltd.
Tel: +44(0)118 981 7339
Fax: +44(0)118 981 9121
Email:
info@appmeas.co.uk
Website: https://.appmeas.co.uk

December 2017
