Comus Europe Ltd. - PRODUCT NEWS



BFH Series Relay from the Comus Group of Companies


Comus International is proud to introduce the BFH series of high reliability instrumentation grade multi-pole reed relays. The 2 Form A, 3 Form A and 2 Form C configurations are ideal for use in new high contact density load board designs used in automatic test equipment.

The new BFH series takes practical advantage of Comus’ vertical manufacturing capabilities. Our Comus Technology BV sputtered ruthenium reed switches are used exclusively and allow for the quicker lead times, superior quality, stable contact resistance and the very best in reed relay performance.

The BFH series are RoHs Compliant built with industry standard footprints and 5 and 12 VDC coil specifications for drop-in replacement when refurbishing and servicing ATE load boards. Custom coil and pin-outs are also available.

The BFH Series have a standard lead time of 6 to 8 weeks. Attractive quantity discounts (100.off+) - please enquire...

FEATURES

* 2 Form A, 3 Form A, and 2 Form C configurations

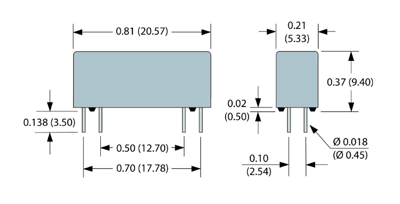

* Industry Standard Footprints

* RoHs Compliant

* High insulation resistance 10^12 O minimum (Form A) & 10^9 O minimum (Form C)

* Metal Cover (reduces magnetic interaction)

* Custom Design Available

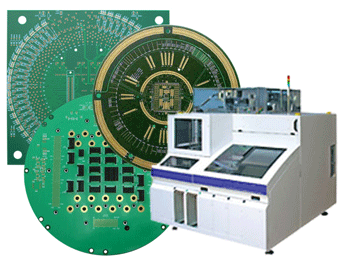

Interface Boards or DUT load boards for LSI, VLSI, Memory & Analog/Mixed signal ATE Test Systems require consistent and repeatable test results. Load boards for expensive ATE testers are constantly being pushed to new limits and with this need for new and innovative reed relays. The requirements of RF, stable contact resistance, faster testing and keeping test costs down are an absolute must.


OTHER COMUS PRODUCTS :

Housed SMD Reed Switches

Patio Heater Tip Switch

Electronic Inclination Sensor

Wind Turbine Multi-Detection Sensor

Mini Reed Relays

SMD Reed Relays

RI-69 Reed Switches

BFM Series Relay

Micro Mini SIP Relay

GC Reed Switches

1339 & BF/BFS Reed Relays

RI-91 Reed Switches

Ultra Mini SIP Relay
__________________________________________________

For more information, please contact :-

Comus Europe Ltd.
Rice Bridge Industrial Estate, Thorpe le Soken, CO16 0HL UK.
Tel: +44(0) 1255 862236
Fax: +44(0) 1255 862014
Email:
sales@comuseurope.co.uk
Web:
www.comuseurope.co.uk

February 2017
