Contelec AG - PRODUCT NEWS

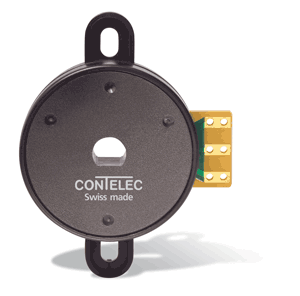

Hollow-Shaft Angle Sensors

Contelec announces the WAL300 Series of hollow-shaft angle sensors that combines high resolution of <0.3° with low cost of $22 in quantities of 1,000.

Housing diameter is 32 mm, and WAL300 Series is available with 6 or 8 mm D shaped hollow-shaft as well as 3/8 inch round bore with set screw. Housing height is 10 mm. Repeatability is 0.3° and operating temperature range is -25 to +75°C. Electrical travel is 0 to 340° with continuous mechanical travel.

WAL300 Series sensors' life is 4 million movements. The sensors are specified to operate when exposed to up to 50 g shock and 10 g vibration and shaft loading of
up to 1 N.

Flat tabs are integrated into the housing for easy mounting. Applications WAL300 Series sensors are found in include robotics, door controls and automotive including convertible roofs and automatic tailgates of cars.



For more information :

Contelec AG
Fabienne Ursenbacher, Portstrasse 38, CH-2503 Biel, Switzerland
Tel. +41 (32) 366 56 36
Fax +41 (32) 366 56 03
Email :
verkauf@contelec.ch
Website :
www.contelec.ch

October 2013
