Contelec non-contacting CANopen rotary encoder sets new standard

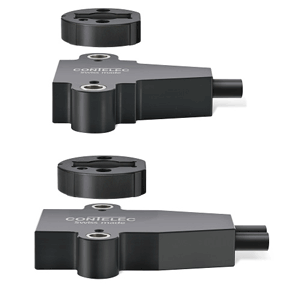

Contelec's Vert-X 32E is available as a fully redundant version

With its Vert-X 32E rotary encoder, Contelec is setting a new benchmark within the budget segment in angle measurement in the CANopen environment. Attractive features of the non-contacting rotary encoder include a supported angle range of 360°, guaranteed linearity of ± 0.3%, 16-bit resolution and a low temperature coefficient of < 25 ppm/K.

With a height of just 10 mm and fixing-hole spacings of 38 mm, the compact rotary encoder also features attractive mechanical specifications, including the metal-reinforced mounting lugs and the rugged cable outlet. The quality of this product is further underlined by the specified IP68 protection class and the operating temperature range of - 40°C to + 85°C.The Vert-X 32E rotary encoder is available with a range of options, including versions with a spur connection or a looped CAN bus. A feature particularly worth mentioning is the availability of fully redundant versions with two independent, electrically separated measurement systems.


For more information :

Contelec AG
Fabienne Ursenbacher, Portstrasse 38, CH-2503 Biel, Switzerland
Tel. +41 (32) 366 56 36
Fax +41 (32) 366 56 03
Email :
Website :

November 2013
