Data Translation Ltd. - PRODUCT NEWS








Cost-Efficient 24-Bit USB Data Acquisition Modules with 4 or 8 Analog Inputs and Galvanic Isolation

Data Translation announces the release of two new low-cost versions for its DT9826 24-bit USB data acquisition module, which is now also available with only four or eight analog inputs instead of 16.

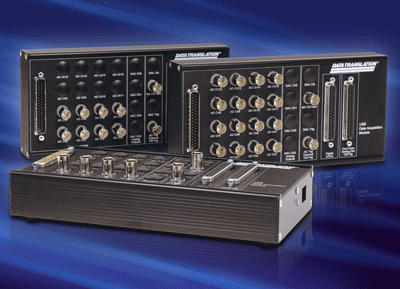

Designed for low channel count applications, the DT9826-4 and DT9826-8 models combine high resolution, extensive functionality (counter/timers, tachometer input, etc.) and the advantages of galvanic isolation into a single, low-cost plug-and-play device. The new USB modules are available as a rugged BNC connection box or as a board-level version for OEMs looking to integrate cost-efficient measurement hardware.

Like the 16-channel version, the new models feature a separate Sigma-Delta A/D converter for each analog channel and achieve a synchronous sampling rate of up to 41.6 kHz per channel. The multifunction modules provide eight digital inputs, eight digital outputs and two counters/timers (32-bit). An additional tachometer input can measure rotational speeds and also be used for phase measurements between the tachometer input and the A/D samples, achieving a resolution of 82 ns (0.005 degrees) at up to 10,000 rpm.

The input and output channels are galvanically isolated (±500 V) to protect the computer, and can be run simultaneously and synchronously. This allows the acquisition of analog and digital I/O signals from all subsystems at once, even at the full sampling rate. The individual channels to be sampled are freely selectable.

Despite the extensive functionality, which also includes integrated anti-aliasing filters and software programmable trigger functions, the USB modules need no external power supply.

The new data acquisition modules ship with a comprehensive software package comprising drivers for Windows 7 (32/64 Bit), XP and Vista, and a wide range of software tools. Interface tools for LabVIEW and MATLAB are also included.

________________________________________________

For more information, please contact :-

Data Translation Ltd.
Prisma Park, Berrington Way, Basingstoke RG24 8GT. UK.
Tel: +44(0) 1256 33 33 30
Fax: +44(0) 1256 33 33 88
Email:
info@datx.co.uk
Web:
www.datatranslation.co.uk

Data Translation GmbH
Winfried Klass
Im Weilerlen 10
74321 Bietigheim-Bissingen
Germany
Phone: +49 (0)7142/95 31-0
Fax: +49 (0)7142/95 31-13
eMail:
sales@datatranslation.eu
Web:
www.datatranslation.eu

July 2012
