Datum Electronics Ltd. - PRODUCT NEWS





Torque and Power Measurement Range enhanced by New Interface with Ethernet

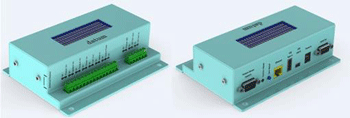

Datum Electronics has designed a new user and control panel interface for its entire torque sensor range.

The products that will utilise the functionality of the interface are:
• Torque Transducer Ranges M425/420, RS425/420
• Shaft Power Monitoring Systems for both Commercial and Naval Installations
• Shaft Power Measuring Kits

The new interface will enable direct access for setup and data acquisition via Ethernet. This facility will allow sensors to be tested and integrated remotely in control rooms; it will also allow access to collect data remotely from any terminal worldwide once the interface is connected to a network with an assigned IP address.

The interface has a display that shows all of the basic outputs of torque, RPM and Power and diagnostics. This display gives the installation engineer real data values at the primary installation point on the test rig, engine, machine or shaft under test.

The interface has a 4 full definable analogue outputs, with the option to select the inputs Torque, RPM, Power, Strain and link these to a choice of 4-20mA, 4-12-20mA, +/-10Vdc, +/-5Vdc, 0-5Vdc or 0-10Vdc

Additional features on the interface are an RS485/232 signal data output, a USB interface for local configuration (this duplicates the functions available through the Ethernet connection), an external tacho sensor supply and input.


About Datum
Datum Electronics is a leader in the design and manufacture of torque and power measurement products and systems. The M420 Series is one of several ranges that we can provide from stock. However, if this Series does not meet your specific application requirements, we have the facilities to design specialist customer solutions and are always ready to discuss these options with you.



For more information :

Datum Electronics Ltd.
Tel: +44 (0)1983 282834
Fax: +44 (0) 1983 282835
Email:
web@datum-electronics.co.uk
Website: www.datum-electronics.co.uk

April 2014
