First Sensor AG - PRODUCT NEWS

Piezoresistive low pressure sensors

First Sensor has launched a piezoresistive manifold low pressure sensor with measuring ranges from imbar to 7bar. Typical applications can be found in medical devices, HVAC, instrumentation as well as industrial and pneumatic controls

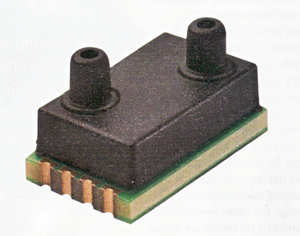

First Sensor presents its new piezoresistive low differential pressure sensors of the HID series with measuring ranges from i mbar to 7bar. The very small and flat sensors with a footprint of only 8 x 13 mm and a height of <7mm are ideal for spacesaving manifold assemblies. The HID differential pressure sensors feature digital signal processing with 15 bit resolution and an SPI interface as well as an analogue output signal.

The high-accuracy and long-term stable sensors with 3.3V or 5V supply are suitable for battery-powered applications in mobile and portable devices. In manifold modules, the SMD miniature sensors allow a compact arrangement without the elaborate and error-prone tubing of individual components. For pick-and-place machines in high-volume production, the HTD sensors can optionally be supplied on tape and reel.

Additional output signals such as 12C bus, 1-wire, alarm outputs or pulse width modulation are available on request. The sensors are temperature compensated from o...7o°C and provide a temperature reading in addition to the pressure value.
Typical applications of the HID sensors can be found in medical devices (ventilators, anaesthesia machines, CPAP, spirometers, oxygen concentrators), HVAC (volumetric flow controllers, filter monitoring, burner control), instrumentation as well as industrial and pneumatic controls.

Important features of the HTD differential pressure sensors:

* Pressure ranges from imbar to 7bar

* Footprint 8 x i3mm, height <7mm

* Ideal for manifold mounting

* SPI interface with 15 bit resolution

About First Sensor AG
First Sensor AG is one of the world's leading suppliers in the field of sensor systems. Our company develops and manufactures both standardized and tailor-made sensor solutions for the detection of light, radiation, pressure, flow, level and acceleration for applications in the Industrial, Medical and Mobility growth markets. The company produces in-house and along the value-added chain from component to system level.
With over 800 employees, we are represented at six German locations and also have development, production and sales sites in the USA, Canada, China, the Netherlands, UK, France, Sweden and Denmark along with a worldwide partner network. We guarantee our compliance through regular successful certifications of the sites according to ISO/TS 16949, ISO 14001, EN ISO 13485, EN 9100 and ISO 9001 - matching the respective business field.
First Sensor AG is listed in the Prime Standard of the German stock exchange in Frankfurt.

For more information, contact:

First Sensor AG
Peter-Behrens-Straße 15
1512459 Berlin

Phone: +49 30 6399 2399
Fax: +49 30 6399 2333

First Sensor Technics Ltd.

Tel: 01509 503 451

May 2018
