FUTEK Advanced Sensor Technology Inc. - PRODUCT NEWS

Flange-to-Flange Reaction Torque Sensors in STOCK...

As the end of the year comes to a close, why not stock up on some reaction torque sensors for 2016? Our Flange-to-Flange Torque Sensors Series (TFF) has a wide selection of torque sensors varying in size and capacity range, designed for inline/reaction torque measurements. All utilizing strain gauge technology, these models provide measurements made in clockwise and counterclockwise directions. From OEM models to robust industrial designs, these sensors are constructed for auditing purposes.

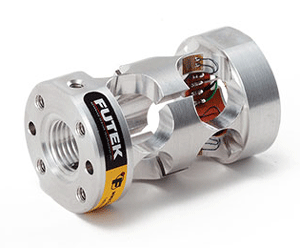

TFF325 and TFF350
OEM Reaction Flange-to-Flange

Our TFF Series features two miniature OEM models - the TFF325 and the TFF350.

• 0.14 N-m to 147 N-m capacity range
• Inside diameter (I.D.) of the TFF325 is a 1/2-20 thread and I.D. of the TFF350 is 0.58 inches
• Overload protection of 150% of the rated output

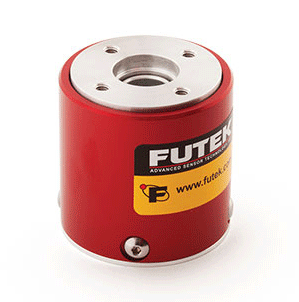

TFF400 and TFF425
Customizable Mounting Interface

The TFF400 Series has the most flexible mounting interface per capacity range.

• 0.04 N-m to 56.49 N-m capacity range
• Overload protection of 300% for 0.04 N-m to 2.82 N-m capacity range
• TFF425 available with flange mounting plates

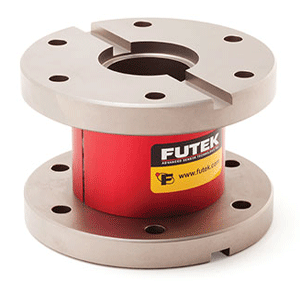

Most Robust Flange-to-Flange Reaction Torque

Accommodates applications that include automotive braking, engine and transmission dynos, fastener testing, and more.

• 225.9 N-m to 1129.8 N-m capacity range
• Available with flange mounting plates
• Inside diameter of 1.75 inches

For more information, please contact :-

FUTEK Advanced Sensor Technology, Inc.
10 Thomas, Irvine, CA 92618
Voice: 949.465.0900
Toll: 800.23.FUTEK
Fax: 949.465.0905
Email: futek@futek.com

December 2015
