Quadcopter Propellor Torque and Thrust Testing

Professional and hobbyist level quadcopters and drones are becoming more popular in the marketplace. A quadcopter by definition uses its four propellers to generate air lift and change directions. The propellers are designed to work in conjunction with each other to insure that there are no torque imbalances to send the vehicle spinning out of control.

Products in Use

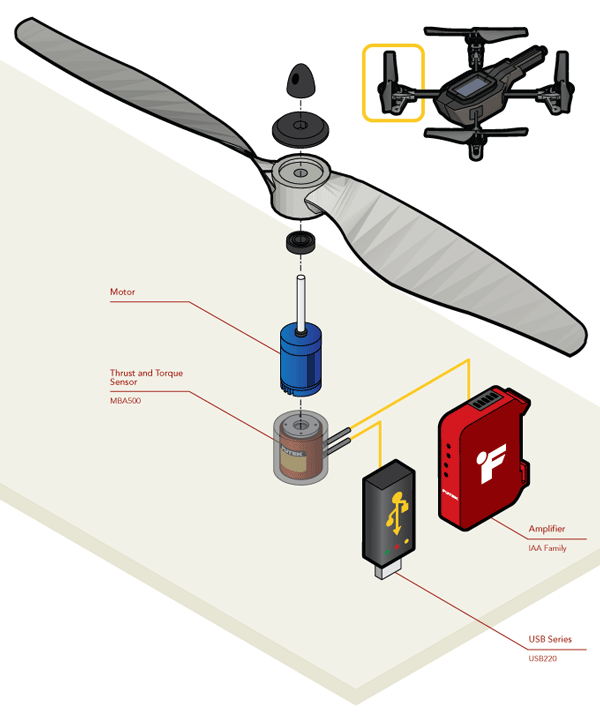

MBA500 Multi-Axis Thrust and Torque Sensor paired with Instrumentation (USB220 and IAA Amplifier). View Product Details

How it Works
1.In order to characterize the thrust and torque generated by each motor and propeller, a MBA500 is fixed to the motor's end.

2.When the motor is powered on and rotating, the thrust of the propellers will be measured by the MBA500’s Fz channel, and the back-torque of the motor is measured by the Mz channel, all while maintaining low crosstalk.

3.This multi-axial sensor, when used with a USB220, allows for a portable setup where a hobbyist/test engineer can use a laptop to analyze the live data of a test both in an outdoor setting or in a more controlled, indoor environment.

For more information, please contact :-

FUTEK Advanced Sensor Technology, Inc.
10 Thomas, Irvine, CA 92618
Voice: 949.465.0900
Toll: 800.23.FUTEK
Fax: 949.465.0905
Email: futek@futek.com

February 2016
