Perception 6.60, from the HBM Test and Measurement range, has now been upgraded to make adjustments for individual user requirements. The new version will offer complete flexibility to users due to a function that allows the main user to adapt the software according to the needs of other users. It also has a patented StatStream technology that can process 100GB within 10 seconds.

The 'User Definer Mode' will enable the 'Definer' to create and change workbenches with respective restrictions, define the functions a user may use or see, as well as protect all settings with a password.

Perception 6.60 also provides an enhanced eDrive application for taking measurements on electric inverters and drive systems. It has improved cycle detection for subsequent computations, visualisation of cycle detection in the live screen for verification, integrated online help including enhanced connection diagrams and new live and time-based computations. In addition it also features new computations in the 'Formulas', visualisations of torque and rotational speed as live curves, software-based sign reversal of measured rotational speed, angle measurement of the encoders used, and new RPC command for making entries to the 'Information' sheet.

Designed for fast and reliable processing of large quantities of data, Perception is ideal for use with the data acquisition devices of the Genesis HighSpeed family.

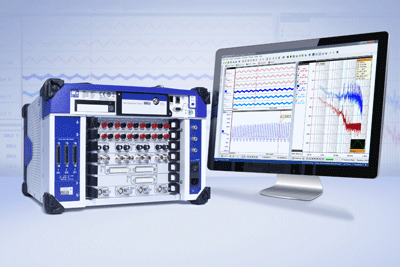

The GEN7tA transient recorder and data acquisition system offers the optimal solution for installation in control cabinets (19") with capabilities up to 200 million measured values per second and channel. It also allows transient recordings and a continuous data streaming of 100 MB/s (1 Gbit Ethernet, standard) or 400 MB/s (10 Gbit Ethernet, optional) to an external PC, or 350 MB/s to an optional, removable Solid State Disk. Furthermore, the data acquisition system provides three slots for acquisition cards up to 224 individually configurable channels.

To make computations easier to handle and read, with Perception 6.60, Regions in the Formula sheet can be defined to be compressed and expanded, and long variable names can be suppressed in the Formula sheet to hide variable paths.

To further make Perception 6.60 user friendly, it can be installed in eight different languages; English, German, French, Chinese, Japanese, Korean, Russian and Portuguese, and has corresponding manuals. The languages can be switched during operation without requiring reinstallation.

Founded in Germany in 1950, HBM is today the technology and market leader in the field of test and measurement. HBM's product range comprises solutions for the entire measurement chain, from virtual to physical testing. The company has production facilities in Germany, USA and China and is represented in over 80 countries worldwide.

For further information please contact:

Millbrook Proving Ground, Station Lane, Millbrook. Bedfordshire MK45 2RA UK
Telephone: +44 (0) 1525 304980
Web: www.hbm.com

August 2015
