IJ Instruments Ltd. - PRODUCT NEWS

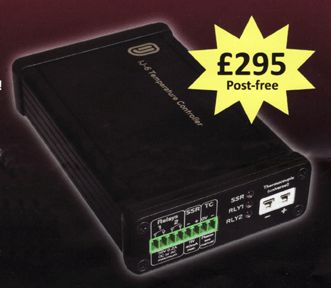

IJ-6 Software-based Temperature Controller

User-friendly control
Turn any Windows® computer into a fully-featured PID temperature controller!

Unlike most PID temperature controllers, where all configuration is done using the front-panel buttons, the U-6 software-based PID temperature controller allows the user to configure everything through an easy-to-use software interface.

Since all control is performed in software, rather than hardware, this results in greatly increased versatility and ease of use. Software features include graphical temperature display, file logging, gain scheduling, relay control and programmable temperature profiles with unlimited segments.

Hardware features & specifications:
• USB powered
• Accepts thermocouple types E, J, K, N, T via mini socket
• Measurement range -200°C to +1300°C (depending on thermocouple)
• Resolution 0.03°C to 0.06°C
• Cold-junction temperature measurement to ±0.03°C
• Variable duty cycle output for SSR drive (11V 40mA max.)
• Two general-purpose SSR outputs (50V 0.2A max.)
• Cycle time 1s (time between sucessive PID cycles)
• Full user manual with PID theory, tuning and examples of hardware connections



Software
The included control software (free to download from http://www.eyejayinstruments.com) provides an easy-to-use interface with access to all of the IJ-6 controller's features. The software has been tested on Windows' XP, Vista and 7.

Software features:
• Manual or PID power control
• File logging of all parameters (time, temperature, power)
• Graphical temperature display
• Ability to change PID parameters "on the fly" with gain scheduling
• Manual or programmed setpoint control
• Progra,mmable tymperature,profiles wi~h unlimited segments
• Cold-junction compensation using NIST algorithms
• Live display of temperatures and power
• Manual, temperature, or programmed control of both relay outputs


For more information, please contact :-

IJ Instruments Ltd.
Harburn Road, West Calder, West Lothian EH55 8AT. UK
E-mail:
sales@eyejayinstruments.com
Website: www.eyejayinstrument.com

May 2013
