Impress Sensors & Systems - PRODUCT NEWS


New high pressure stainless steel differential pressure transmitters offer three-in-one capability

Instrumentation specialist Impress Sensors & Systems Ltd has launched a new range of high pressure (up to 70 bar), mechanically robust differential pressure transmitters for liquids and gases. The transmitters provide three-in-one capability, including an adjustable 4-digit LED display, a pressure transmitter and two PNP pressure switch connections.

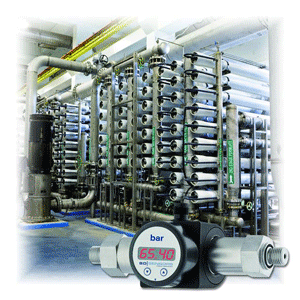

The new DMD 831 is a stainless steel differential pressure transmitter for industrial use that incorporates two piezoresistive stainless steel sensors and stainless steel diaphragms. The transmitter is therefore suitable for a wide range of plant and process engineering applications, including HVAC, energy and laboratory applications.

Differential pressure sensors and transmitters measure the difference in pressure from one side of a diaphragm to the other or between two diaphragms. When pressure is applied, the DMD 831 determines the pressure difference between positive and negative sides and transforms this into a proportional electrical signal. Typically, this enables the measurement of pressure drop across a filter due to build up or blockages, or for measuring flow and level via a pressurised vessel.

The DMD 831 is a cost effective, compact solution for OEMs and end users across a diverse range of process control applications, including pressure control for lubrication systems, hydraulics and pneumatics, air compressors, steam, water, fuels and oils.

Sam Drury, Sales & Marketing Director at Impress Sensors & Systems Ltd comments: “The robust, compact design of the DMD 831 allows it to be integrated in a diverse range of process engineering and machinery applications, particularly where the installation space is restricted. The sensors also provide a turn down capability of 10 to 1.”

Seven different versions of the DMD 831 are available, with differential pressures from 0… 80 mbar up to 0… 70 bar. The transmitters operate in media temperatures from -40 deg C to +125 deg C. Switching accuracy is +/- 0.5% FSO according to IEC 60770. The transmitters are ingress protected to IP65.

December 2011
