Interface Force Measurements Ltd. - PRODUCT NEWS

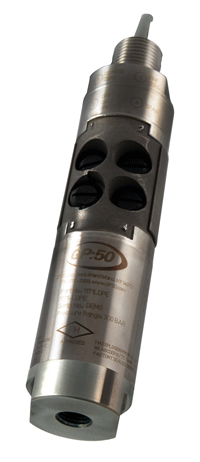

The Model 1171 field rangeable pressure sensor from Interface Force needs no calibrated pressure source

As part of its GP:50 range of pressure sensors and transmitters for hazardous and harsh environments, Interface Force is pleased to announce the Model 1171 field rangeable pressure sensor. A rugged, compact transmitter, the 1171 has been designed for use in severe weather conditions such as those encountered offshore in the energy and maritime sectors.

Pressure ranges from 50 through 100,000 PSIS, PSIA and PSIV and is 4-20mA loop powered. The external zero, span and calibration controls are hermetically sealed and easily adjusted with the help of a magnetically coupled drive system. One of the main features of the Model 1171 is that it allows for 5:1 ranging of the transmitter’s standard pressure range, so there is no need for a calibrated pressure source.

Completely sealed, the GP:50 Model 1171 is an all welded constructed unit and using 15-5 and 316 stainless steel in the pressure activity means that it is completely watertight and corrosion resistant. For added reliability, the unit is designed without an ‘O’ ring that can be susceptible to wear.

The 1171 series of pressure sensors is offered with many options to meet the exacting requirements of customers’ applications. Interface Force has a highly qualified and experienced in-house design team of engineers ready to help engineers find a solution for their pressure sensing applications.

All 1171 sensors are intrinsically safe and have both FM and CSA and explosion approvals. Specific information can be found at http://www.1171pressuresensor.co.uk/


______________________________________________________________________

For more information, please contact :-

Interface Force Measurements Ltd.
Unit 19 Wellington Business Park, Dukes Ride, Crowthorne, Berkshire RG45 6LS UK.
Tel: +44 (0)1344 776666
Fax: +44 (0)1344 774765
Email:
info@interface.uk.com
Website: www.interface.uk.com

March 2016
