Ixthus Instrumentation Ltd. - PRODUCT NEWS


Portable high precision sensor measurement tool for test, calibration and fault finding

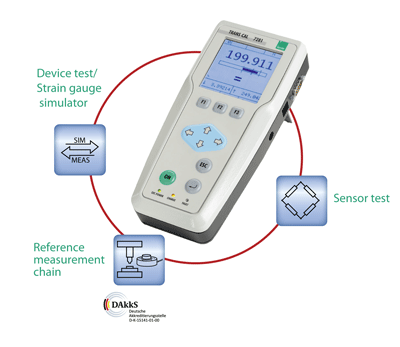

Now available in the UK from Ixthus Instrumentation, Burster’s new TRANS CAL 7281 is a high precision hand-held portable test and calibration tool for sensor components used on equipment such as hydraulic presses, torque tools, high precision measuring devices and pressure-regulating systems on assembly lines.

The battery or mains powered instrument supports strain gauge/normalized signal ± 5 V, ± 10 V, and potentiometric sensors; and includes a strain gauge simulator up to 50 mV/V. Combined with a reference sensor the device provides a high-precision reference measurement chain for force or torque etc. The compact instrument can also be used for routine testing to measure and record isolation resistances and input/output resistances, and as a fault-finding tool for service engineers. An optional factory calibration certificate and/or German accredited DAkkS calibration certificate is available when the measurement device needs to be used as a reference.

The TRANS CAL 7281 can store up to sixteen programs and has a data logging capacity of 30,000 measurements which can be shared and transferred to a PC with Burster’s DigiCal configuration and data-acquisition software for display and reporting functions which also includes test certificates compilation. Furthermore Burster’s TEDS software can be used to automatically load measuring chain values.

A dedicated version for reference measuring chain of compression load from 20 N to 100 kN with DKD/DAkkS calibration certificate is also available. The 72-REF-EN version uses the full featured 7281 for the calibration of press-fit force measuring equipment and is typically used with Burster’s high precision 8527 series sensor and is supplied all connection cabling and DigiCAL PC software.



About Ixthus
Ixthus works closely with leading global suppliers of non-contact sensing technologies as well as force, torque and vibration sensor and transducer manufacturers, providing a complete service with its knowledgeable technical staff available to solve customers' measurement problems - from the first enquiry to complete after-sales support.



For more information, please contact :-

Ixthus Instrumentation Ltd.
Tel: +44(0) 1327 353437
Email:
tony.stoyles@ixthus.co.uk
Web: www.ixthus.co.uk

July 2015
