CoMo Injection with MultiFlow balances Hot-Runner Moulds automatically

The CoMo Injection system from Kistler Instruments (, widely used by the injection moulding industry to achieve maximum productivity by minimising rejects, uses cavity pressure to monitor and control the injection process. This system has now been extended with the addition of the MultiFlow option to provide automatic hot runner balancing

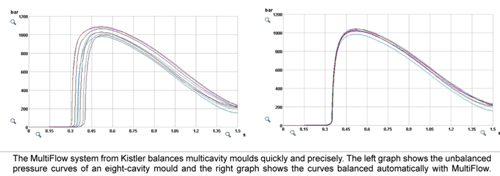

Cycle by cycle, CoMo Injection with MultiFlow monitors the pressure profile of each cavity of a hot-runner mould from injection, through compression and holding, to the cooling phase. During the injection and holding pressure phases, the MultiFlow software analyses the pressures curves in all cavities. The synchronous rise in pressure in all cavities is achieved by the system automatically calculating the optimal set-point temperature for each hot runner tip, which is then transferred via an interface to the hot runner controller.
The mould is automatically balanced during process start-up, and continuous optimisation keeps it stable during production. The balanced mould always exhibits congruent cavity pressure curves during the injection and holding pressure phases. At the same time, CoMo Injection continuously monitors the quality of all of the parts produced and signals any need for automatic separation of rejects.

Hot-runner balancing with MultiFlow completely eliminates the need for time-consuming manual optimisation and adjustment of the hot-runner temperatures during set-up and production.

Kistler Instruments Limited
Established in Wintherthur (Switzerland) in 1957, Kistler is represented in over 50 countries and has subsidiaries in Germany, France, Italy, UK, Japan, USA, China, Korea and Singapore. With a staff of more than 800, the Kistler Group is one of the world's leading providers of dynamic measuring instrumentation. The Kistler Group achieved turnover of 160 million Swiss Francs in the 2005 financial year.
Kistler's core competence is the development, production and use of sensors for measuring pressure, force and acceleration. Kistler's know-how and electronic systems can be used to prepare measuring signals for use in analyzing physical processes, controlling and optimizing industrial processes, improving product quality in manufacturing and improving performance in sports and rehabilitation.
Kistler offers a comprehensive range of sensors and systems for engine development, automotive engineering, plastics and metal processing, installation technology and biomechanics.
Heavy investment in research and development, 15% of staff worldwide are engaged in research and development, has generated a number of innovations using piezoelectric, piezoresistive and capacitive techniques to provide solutions to numerous force, pressure and acceleration measuring problems. These innovations include the world's first commercial quartz sensor, two-wire constant current technology to integrate sensors with microelectronic circuitry, high-temperature pressure sensors for use up to 400 Deg C and three-component force measuring sensors.


For more information, please contact :-

Kistler Instruments Ltd.
13 Murrell Green Business Park, London Road, Hook RG27 9GR
Tel: +44 (0)1256 741550
Fax: +44 (0)1256 741551

May 2010
