New triaxial PiezoBeam® accelerometer offers best-in-class sensitivity to size ratio

The Kistler Type 8688A series instrument grade triaxial accelerometers are ideal for use in a multitude of R&D and OEM applications where high-precision, low-frequency measurements and high-durability packaging are absolute requirements

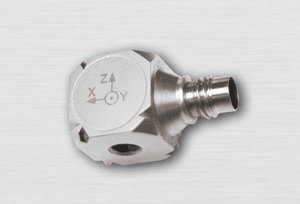

The low mass, hermitically sealed (IP68) titanium cube measures just 12.5 mm and combines Kistler's PiezoBeam technology with an integrated PiezoTron charge converter to produce a triaxial accelerometer that has an exceptional sensitivity to size ratio.

Available in 5, 10 and 50 g versions, the 8688A series accelerometers combine an 0.5 to 5000 Hz frequency range with excellent phase accuracy and shock survivability, a specification suited to a wide variety of applications ranging from aerospace ground vibration testing; flight test; structural dynamics and vibration assessments to automotive laboratory testing and vehicle ride assessments.

The ground isolated mounting clip can be used in three sensor orientations for mounting flexibility. The primary mounting surface has a 10-32 UNF threaded hole for use with a ground isolated screw-on adhesive or magnetic mounting base.

As an option, the accelerometers can be supplied with TEDS (Transducer Electronic Data Sheets) IEEE1451.4 capability.



Kistler Group
Established in Winterthur (Switzerland) in 1957, the Kistler Group now has a worldwide presence with 25 group companies and 30 distributors ensuring prompt, local application support and short delivery times. With a staff of more than 1050, the Kistler Group is one of the world's leading providers of dynamic measuring instrumentation with a turnover of 210 million Swiss Francs (GBP 145M) in the 2010 financial year.
Kistler's core competence is the development, production and use of sensors for measuring pressure, force and acceleration. Kistler's know-how and electronic systems can be used to prepare measuring signals for use in analysing physical processes, controlling and optimising industrial processes, improving product quality in manufacturing and improving performance in sports and rehabilitation.
Kistler offers a comprehensive range of sensors and systems for engine development, automotive engineering, plastics and metal processing, installation technology and biomechanics.
Heavy investment in research and development, 15% of staff worldwide are engaged in research and development, has generated a number of innovations using piezoelectric, piezoresistive and capacitive techniques to provide solutions to numerous force, pressure and acceleration measuring problems. These innovations include the world's first commercial quartz sensor, two-wire constant current technology to integrate sensors with microelectronic circuitry, high-temperature pressure sensors for use up to 400 Deg C and three-component force measuring sensors.

For more information, please contact :-

Kistler Instruments Ltd.
13 Murrell Green Business Park, London Road, Hook RG27 9GR
Tel: +44 (0)1256 741550
Fax: +44 (0)1256 741551
Email:
sales.uk@Kistler.com
Website: http://www.kistler.com
