A first for Kistler - Intelligent Universal Stator

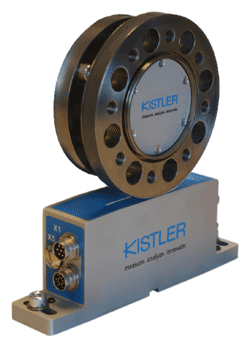

The new Kistler KiTorq torque measuring flange system operates without an antenna ring and has standard flange geometry conforming to ISO7646 for easy installation. The open stator design allows faster installation whilst minimising the risk of damage and easier visual inspection during testing. The universal, intelligent stator may be used with any KiTorq rotor of the same speed rating for greater operational flexibility.

A choice of 500, 1,000, 2,000 or 3,000 Nm measuring ranges is available each with an accuracy class of 0.05% of range. The system has an excellent torque signal bandwidth of up to 10 kHz and a 60 pulses per revolution speed output.

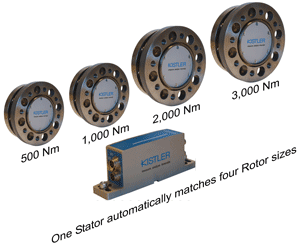

A single, intelligent stator can be used with any KiTorq rotor of the same speed rating and will automatically recognise the rotor measuring range. This minimises hardware investment as one stator may be used with rotors of differing ranges for different applications. Installation is simplified by the contactless, digital telemetry that does not require an antenna ring. The lack of an antenna ring has not reduced the precision of the sensor which has an excellent signal bandwidth of 10 kHz and accuracy of better than 0.05%.

The stator supplies frequency, analogue and digital signals outputs that are fully scalable via an RS-232 or USB interface. When needed, the rotor's original measuring range may be overridden to allow the full output signal to be available over a defined range. A second, freely selectable measuring range may also be defined at each output.

The solid measuring flange is extremely robust and has been tested to EN 60068-2-27 for mechanical shock, EN 60068-2-6 for triaxial vibration loading and EN 61326-1 for interference immunity. The KiTorq system is supplied as standard with SensorTool configuration and diagnostic software and calibration certificates. Several calibration options are available for the configurable output signals of the KiTorq system and when replacing an individual rotor or stator, the notional calibration values can be calculated to avoid the need to have the unit recalibrated by the manufacturer.

The KiTorq measuring flange is ideal for use in test rigs for electric motors, internal combustion engines, transmissions, pumps and compressors.



Kistler Group
Established in Winterthur (Switzerland) in 1957, the Kistler Group now has a worldwide presence with 25 group companies and 30 distributors ensuring prompt, local application support and short delivery times. With a staff of more than 1050, the Kistler Group is one of the world's leading providers of dynamic measuring instrumentation with a turnover of 210 million Swiss Francs (GBP 145M) in the 2010 financial year.
Kistler's core competence is the development, production and use of sensors for measuring pressure, force and acceleration. Kistler's know-how and electronic systems can be used to prepare measuring signals for use in analysing physical processes, controlling and optimising industrial processes, improving product quality in manufacturing and improving performance in sports and rehabilitation.
Kistler offers a comprehensive range of sensors and systems for engine development, automotive engineering, plastics and metal processing, installation technology and biomechanics.
Heavy investment in research and development, 15% of staff worldwide are engaged in research and development, has generated a number of innovations using piezoelectric, piezoresistive and capacitive techniques to provide solutions to numerous force, pressure and acceleration measuring problems. These innovations include the world's first commercial quartz sensor, two-wire constant current technology to integrate sensors with microelectronic circuitry, high-temperature pressure sensors for use up to 400 Deg C and three-component force measuring sensors.
