Kistler Instruments Ltd. - PRODUCT NEWS








Kistler pressure sensors for ATEX zoned hazardous environments

The range of high performance, pressure sensors from Kistler Instruments (www.kistler.com) are now available certified for use in ATEX Zone 0, intrinsically safe and Zone 2, non-incendive hazardous areas.

The sensors use a new, patented double lip sealing method which eliminates the need for an O-ring seal ensuring accuracy and reliability where extremely high temperature, vibration and shock are likely. Contained in a high integrity housing, the piezoresistive sensing element is isolated from the pressure media by a welded 316L stainless steel or HastelloyTM diaphragm. Integrated surface mount electronics provide signal conditioning and temperature compensation.

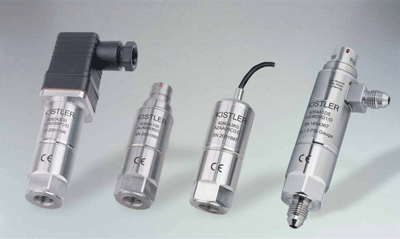

The three ranges consist of absolute (Type 4260A), gauge (Type 4262A) and differential (4264A) pressure sensors all with an accuracy of up to 0.05% FS and long-term stability of 0.1% FS per year. Every sensor is fully tested over both pressure and temperature ranges to ensure compliance with the appropriate specification. This calibration data, traceable to ISO 17025, is available for all versions.

Pressure ranges from 1 to 350 barA for the 4260A, 0 to 35 barG for the 4262A and 0.1 to 10 barD for the uni-directional 4264A and ±0.1 to ±1 barD for the bi-directional 4264D. All have EMC, reverse polarity, power supply regulation and short circuit protection as standard and display exceptional linearity, hysteresis and repeatability characteristics.
The ATEX certified piezoresistive pressure sensors have been designed to withstand harsh operating conditions where extremes of temperature, vibration and shock are likely to be present. Typical applications include R&D, industrial, automotive and aerospace component and system testing and a wide range of electrical and pressure connections are available.


About Kistler
The Swiss-based Kistler Group is a leading global supplier of dynamic measurement technology for pressure, force, torque and acceleration. Kistler's technology is used to analyse physical processes, control industrial processes and optimize product quality.
Kistler has a full range of sensors, electronics and systems for engine development, vehicle technology, assembly technology, plastic and metal processing as well as for biomechanics.
The Group maintains its global presence through 26 sales and manufacturing companies, with tech centres on all continents and more than 30 agencies, enabling the Group to maintain local contact with customers and offer individualized application support.
The Kistler Group employs 1,250 people worldwide and generated revenues of CHF 285 million (GBP 193.5M) in 2013.

For more information, please contact :-

Kistler Instruments Ltd.
13 Murrell Green Business Park, London Road, Hook RG27 9GR
Tel: +44 (0)1256 741550
Fax: +44 (0)1256 741551
Email:
sales.uk@Kistler.com
Website: http://www.kistler.com

November 2014
