Kistler Instruments Ltd. - PRODUCT NEWS

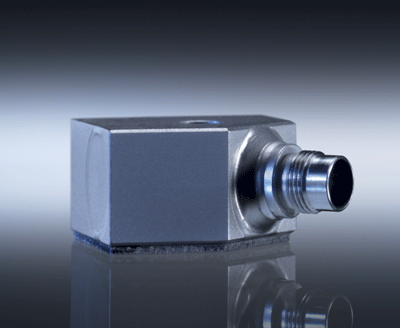

Miniature IEPE triaxial accelerometer weighs only 6 grams

The new sensor from Kistler Instruments (http://tinyurl.com/KIL-5451-8764B) is a miniature, through hole triaxial accelerometer available with measurement ranges of ±50g and ±100g designed for dynamic vibration measurements, especially where space is limited. Full scale signal output is ±5V for both ranges. Applications include automotive NVH and durability, space and aerospace vehicle testing and subsystem vibration testing.

The Kistler ceramic shear element technology ensures high immunity to base strain and the low mass, 6 gram, minimises any effect on the item under test. The welded titanium through hole fixing housing is hermetically sealed and M4.5 and ¼-28 miniature 4 pin connector options allow 360° cable orientation for maximum installation flexibility.

The IEPE (Integrated Electronics Piezoelectric) design with the TEDS (Transducer Electronic Data sheet) option delivers small size, light weight, robustness and low cabling costs whilst the aluminium anodized base ensures ground isolation from mounting surfaces.

The slim profile, base isolation, light weight and wide frequency response in the three orthogonal directions combined with centre-hole mounting flexibility for 360° cable orientation make the new Type 8764B accelerometers easy to install where space is restricted and the robust welded titanium construction ensures a long life in hostile environments.



Kistler Group
The Swiss-based Kistler Group is one of the world's leading providers of dynamic technology for measuring pressure, force, torque, and acceleration. Kistler technology is used to analyze physical processes, control industrial processes, and optimize product quality.
Kistler offers a comprehensive range of sensors, electronics, and systems for engine development, automotive engineering, plastics processing, metalworking, assembly engineering, and biomechanics.
Thanks to its 30 Sales and Production Centers, three Tech Centers, as well as more than 30 agencies, the Group is present on every continent. This allows customers to benefit from local contacts as well as application support tailored to their needs.
The Kistler Group employs more than 1,400 people and, in the 2014 financial year, achieved sales of 319 million CHF.



For more information, please contact :-

Kistler Instruments Ltd.
13 Murrell Green Business Park, London Road, Hook RG27 9GR
Tel: +44 (0)1256 741550
Fax: +44 (0)1256 741551
Email:
sales.uk@Kistler.com
Website: http://www.kistler.com

March 2016
