Kistler launch a highly dynamic pressure sensor with 500 kHz natural frequency

If you need to measure high pressure in hydraulic and pneumatics systems or highly dynamic pressure measurements in shock tubes or blast tests, Kistler Instruments has the answer.

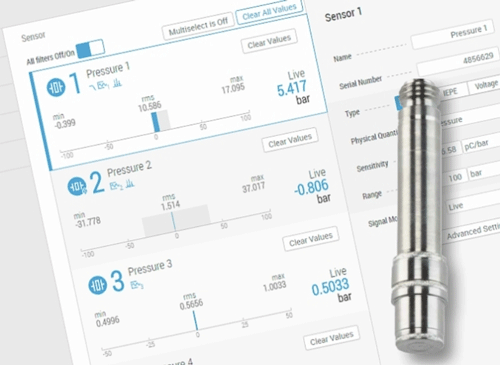

The new 1,000 bar, miniature Type 603C piezoelectric (PE) pressure sensor has a very high natural frequency of 500 kHz which makes it suited to a wide range of applications where highly dynamic pressure transients need to be measured.

A unique characteristic of the 603C PE sensor is its ability to measure small pressure fluctuations, superimposed on a high static pressure, with exceptional resolution. The integrated acceleration compensation ensures reliable measurements even under highly vibrating conditions. Add long life reliability and calibration at 10% and 100% of FSO making the sensor easily matched to changing needs resulting in exceptionally low cost of ownership.

With linearity typically better than ±0.4% FSO and operating temperature from -196°C to +200°C, the new sensor is big in performance but small in size. A 5.5mm diameter, robust, high pressure membrane is mounted in a hermetically sealed, welded, stainless steel housing available in both long 37.8 mm and the short 15 mm long overall versions both with a 6.3 mm overall diameter.

The new Type 603C PE pressure sensor has been designed for use with the recently introduced dual-mode LabAmp Type 5165A series for dynamic pressure and the Type 5167A series for both dynamic and quasi-static pressure measurements.


About the Kistler Group
Kistler is the global leader in dynamic measurement technology for measuring pressure, force, torque and acceleration. Cutting-edge technologies provide the basis for Kistler's modular solutions.
Customers in industry and science benefit from Kistler's experience as a development partner, enabling them to optimize their products and processes so as to secure a sustainable competitive edge. The owner-managed Swiss company's unique sensor technology plays a key role in the evolution of automobile development and industrial automation, as well as in numerous emerging sectors. With a broad knowledge of applications and an absolute commitment to quality, Kistler is making an important contribution to the further development of current megatrends. This includes topics such as electrified drive technology, automated and connected driving, emission reduction and Industry 4.0.
Some 1860 employees at 61 locations worldwide are dedicated to developing new solutions and offer customized service for individual applications. Since its founding in 1959, the Kistler Group has grown along with its customers, generating sales of CHF 422 million in 2017. Approximately 8% of this went back into research and technology - and thus into achieving better results for all our customers.



For more information, please contact :-

Kistler Instruments Ltd.
13 Murrell Green Business Park, London Road, Hook RG27 9GR
Tel: +44 (0)1256 741550
Fax: +44 (0)1256 741551
Email:
sales.uk@Kistler.com
Website: http://www.kistler.com

March 2018
