A novel combined pressure and temperature sensor for composite moulding

To support automated resin transfer (RTM) and wet moulding composite manufacturing methods Kistler Instruments has produced a novel combined pressure and temperature sensor specifically for these applications.

For some years the aerospace industry has been using composite materials to save weight without compromising strength but now the automotive industry is rapidly catching up in the quest for lower fuel consumption and emissions. Unlike the aerospace sector where a relatively few, large items can be produced by expensive, labour intensive methods, the automotive sector needs to produce large quantities of much smaller components cost effectively.

The techniques used for high volume composite production demand monitoring and control similar to conventional injection moulding to ensure consistent, high quality output. With its long experience of developing systems and components for the injection moulding industry, Kistler Instruments is ideally placed to provide the process monitoring systems needed by low pressure composite moulding techniques.

Much like injection moulding and other filling processes, the cavity pressure curve is a key factor in process optimization and production monitoring. Characteristic process phases such as evacuation, filling and curing can easily be identified from the pressure curve allowing process parameters to be easily optimized to make production more cost-effective.

The pressure signal can also be used as a control variable for individual process steps for online process control. Anomalies in the pressure curve show whether defects can be expected in the final part which, if out of tolerance, can be ejected. The pressure signal is also captured and recorded to allow traceability of individual process steps. For these reasons, the pressure curve is an essential tool for quality assurance. Due to the much lower cavity pressure experienced in composite moulding systems, the cavity pressure sensor needs to measure low pressure with high resolution to reliably detect even the smallest pressure or vacuum changes.

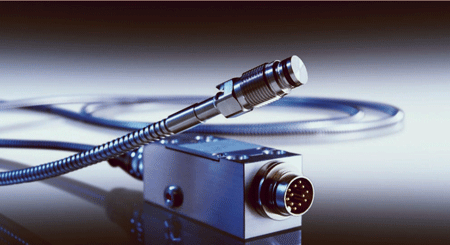

The new Type 4001A sensor meets all of these demands plus the integrated temperature element, accurate up to 275°C, monitors the temperature conditions inside the mould allowing automatic temperature compensation to correct the pressure signal due to thermal changes during the process.

The new Type 4001A low pressure and high temperature sensor is a vital addition to Kistler Instrument's range of sensors and systems specifically tailored to optimize and automate manufacturing processes, including related quality assurance requirements.


About the Kistler Group
Kistler is the global leader in dynamic measurement technology for measuring pressure, force, torque and acceleration. Cutting-edge technologies provide the basis for Kistler's modular solutions.
Customers in industry and science benefit from Kistler's experience as a development partner, enabling them to optimize their products and processes so as to secure a sustainable competitive edge. The owner-managed Swiss company's unique sensor technology plays a key role in the evolution of automobile development and industrial automation, as well as in numerous emerging sectors. With a broad knowledge of applications and an absolute commitment to quality, Kistler is making an important contribution to the further development of current megatrends. This includes topics such as electrified drive technology, automated and connected driving, emission reduction and Industry 4.0.
Some 1860 employees at 61 locations worldwide are dedicated to developing new solutions and offer customized service for individual applications. Since its founding in 1959, the Kistler Group has grown along with its customers, generating sales of CHF 422 million in 2017. Approximately 8% of this went back into research and technology - and thus into achieving better results for all our customers.
