Labfacility Ltd. - PRODUCT NEWS

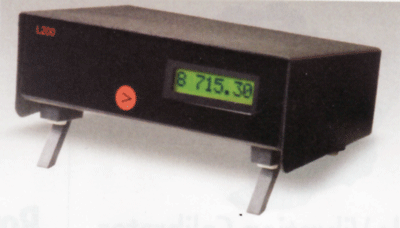

Labfacility L200 - USB digital thermometer / data logger

The Labfacility L200, thermocouple and Pt 100 thermometer can be used in conjunction with a PC to provide accurate, versatile 8 channel temperature measurement, scanning and logging of measured values. It can also be used as a "stand alone" 8-channel indicator/logger and incorporates a digital display of measured temperature.

The in-built, self-calibration facility is a rapid and convenient method for on-site calibration and does not require any additional equipment other than a special, external link for thermocouple ranges or two special, close-tolerance resistors for Pt 100,

The L200 is designed to provide exceptional stability with high measurement resolution and represents an ideal crossover between plant practicality and laboratory performance at a very competitive price.

The PC software supplied with the instrument allows control, measure, logging and calibration functions.

The eight thermocouple input channels accept types J,K,T,E, N, R, S & B: highly stable, automatic cold junction compensation is incorporated The Pt 100 version accepts 3-wire sensors with up to 100m leads.

Display resolution for thermocouples is 0.I oC on the front panel readout and 0.01 oC in the PC software control panel; Pt 100 ranges are displayed with 0.01 resolution.The integral, backlit LCD display can indicate selected channels or automatically scroll through all inputs. The measured temperature can be displayed in degrees C or F Communications are provided via a USB port.

The L200 is CE marked, RoHS compliant and has a two year warranty.

Buy online >>


For more information, please contact :-

Labfacility Ltd.
Bognor Regis, UK
Tel: +44(0)1243 871280 Sheffield Tel: +44(0)1909 569446
Email:
info@labfacility.com
Website:
www.labfacility.com

January 2018
