Dissolved Ozone Measurement in Pharmaceutical Water

Background

Ozone (O3) is an unstable tri-atomic form of oxygen. It is a very strongly oxidizing gas that is injected into water to remove organics that may contribute color, odor or taste.

Most importantly, ozone sanitizes the water, rapidly destroying any microbiological contamination. Dissolved ozone reverts back to harmless oxygen in a matter of minutes, depending on the temperature and pH of the water, so it must be generated and measured right next to the process. Ozone leaves virtually no harmful breakdown products.

Ozone generators operate by passing dry air or oxygen next to high voltage electrodes where a corona discharge converts some of the oxygen to ozone, similar to the reaction caused by a lightning storm. The gas mixture is then contacted with the water, either in a tank diffusion system or in a pipe with venturi injector. Intimate contact is made to maximize the dissolution. There are newer generation techniques that can produce ozone directly in the water and reduce the possibility of atmospheric losses.

Ozonation in Pharmaceutical Water Production

Disinfection

Ozone is an excellent material for disinfecting pharmaceutical water systems. However, it is an undesirable addition to point of use pharmaceutical water. In order to eliminate the ozone, a UV light source is employed to effectively destroy it after the disinfection process is complete. The UV light also has the added benefit of providing further disinfection.

Clean-in Place (CIP)
Increasingly, ozone is being used in pharmaceutical processes to sanitize pipe works and to reduce biofilm quicker and at lower cost than heat or chemicals. Also, ozone breaks down into harmless oxygen.

Dissolved Ozone Measurement
Due to the critical requirements for pharmaceutical water, on-line monitoring and control of ozonation have become standard practice.

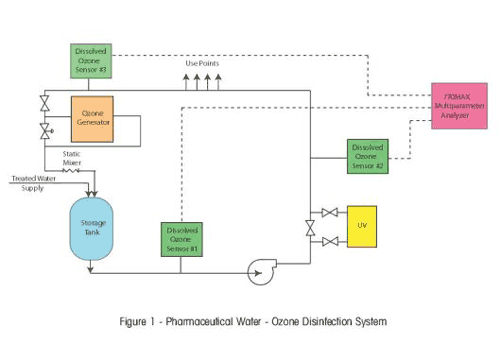

In most pharmaceutical water applications, ozone monitoring is required at three critical measurement points in the production process as seen in figure 1.




About METTLER TOLEDO Process Analytics
METTLER TOLEDO Process Analytics Division develops and manufactures instruments and sensors used for liquid process measurement and control in production processes, and pure and ultrapure water applications. Offered measurements include pH, resistivity/conductivity, dissolved oxygen, dissolved ozone, oxidation reduction potential (ORP), total organic carbon (TOC), sodium, silica and flow. METTLER TOLEDO Process Analytics Division consists of two business units, Ingold and Thornton, whose products are commonly used in industries such as:
* Microelectronics manufacturing
* Pharmaceutical and biotechnology
* Power and steam generation plants
* Brewing, food and beverage production
* Chemical, gas process and refining industries
