Smart multi-function laser micrometer with integral controller and Ethernet interface

Precision sensor manufacturer Micro-Epsilon has launched a high performance, self-contained optical laser micrometer with Ethernet interface. As well as having an extremely compact design, the system also offers high accuracy and a maximum transmitter to receiver gap of 2 metres, which incredibly, unlike any other micrometer currently on the market, the optoCONTROL 2520 allows the target to be positioned at any point in the gap.

The new optoCONTROL 2520 is a non-contact laser-based measurement system that uses an integral, high resolution CCD camera for dimensional measurements. The system offers a high sampling rate (2.5kHz), combined with excellent repeatability (< 5µm), linearity (0.02mm) and resolution (< 1µm). The system offers a maximum measurement width of 46mm.

Packed with features
For the optoCONTROL 2520, an intuitive web browser interface is used for viewing and recording measurement values, configuration of sensor parameters and visualisation of the sensor video signal. No software needs to be downloaded by the user to a PC or laptop - the micrometer's integrated software allows the user to set up and record measurements via a web browser.

A real time measurement chart provides a convenient method of display. A variety of measurement values such as single edges, diameter and centre line can be displayed or hidden in the chart at the user's discretion. In addition, the system provides various averaging and filter methods, as well as statistical process control features. Ethernet, EtherCAT and RS422 interfaces are available directly from the sensor. For analogue outputs, a small DIN rail module is supplied.

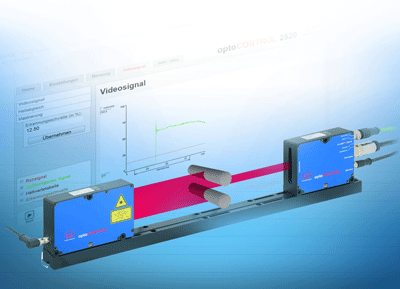

OptoCONTROL sensors measure the dimensions, edges or gaps on a target using the ThruBeam 'shadow' principle. The transmitter produces a parallel light curtain that is transmitted via a lens arrangement into the receiving unit. The beam is interrupted if there is an object in the light path. The CCD camera in the receiver unit measures the 'target' contour formed by the shadow and outputs this as a geometrical value. The target object can be in any position within the light curtain. The smallest detectable diameter of the target object is approximately 0.5mm, which means the system can be used to measure small gaps or objects such as IC pins and pin strips in electronics production. The sensor is also suitable for detecting large objects, performing large distance measurements, counting tasks and roundness measurement. Up to eight segments of the target can be measured and output simultaneously.

Chris Jones, Managing Director at Micro-Epsilon UK comments: "As well as offering a long measuring range of up to 2 metres, the optoCONTROL 2520 is also extremely compact, enabling machine builders, systems integrators and end users to install the system in production lines and machines where space may be limited. In addition, unlike other high accuracy micrometers currently available, the optoCONTROL 2520 can have the target positioned at any point in the gap rather than just a small 'working position', giving the user much more flexibility in use."

The optoCONTROL 2520 is protected to IP64 and can operate in ambient temperatures from 0°C to +50°C. All optoCONTROL sensors function without a rotating mirror and so are completely wear-free.

The optoCONTROL series is used in production and quality assurance areas for non-contact, highly dynamic measurements on running conveyors, extrusion lines, drawing processes, on machines and in automated production plants.

For more information on the optoCONTROL 2520, please call the Micro-Epsilon sales department on 0151 355 6070 or email info@micro-epsilon.co.uk


Micro-Epsilon (www.micro-epsilon.co.uk) is a major global manufacturer of sensors, headquartered in Germany. The company’s range of displacement sensors measure everything from to distance, position, vibration, dimensions and thickness, using both contact and non-contact measurement techniques. These techniques include 1D, 2D and even 3D laser-optical sensors and systems, eddy-current, capacitive, LVDT & inductive, potentiometric and draw-wire principles. Additionally Micro Epsilon has developed its own range of non-contact infrared temperature sensors that can measure virtually any target temperature from -40 to +3,300°C.

With more than 35 years’ experience in the industry, Micro-Epsilon isn’t just a sensor manufacturer. The company is highly innovative and understands the importance of providing complete solutions and support services for its customers. The firm is renowned for its expertise in consulting, development and application of industrial sensors to complex, customer-specific solutions for measurement, inspection and automation. The focus is on selling technical advantage to its customers.


For sales and technical information contact:-

Chris Jones
Micro-Epsilon UK Ltd.
Telephone: +44(0)151 355 6070
Fax: +44(0)151 355 6075
Email:
info@micro-epsilon.co.uk
Website:
www.micro-epsilon.co.uk

July 2014
