New optical micrometer with HTML5 interface is smartphone-compatible

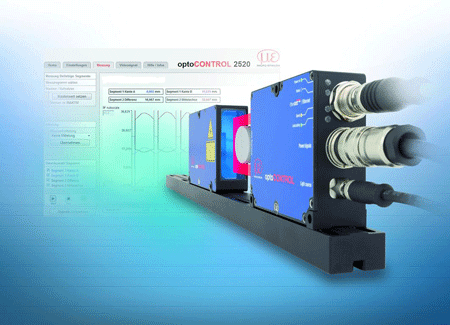

The optoCONTROL 2520 high performance, self-contained optical laser micrometer from Micro-Epsilon has been upgraded with several new features that simplify user set up and configuration.

The optoCONTROL 2520 laser micrometer with integrated controller and Ethernet interface stands out due to its high precision, 46mm measuring range and a maximum transmitter/receiver distance of up to 2m. The web browser interface now runs on HTML5 instead of Java, which means improved stability and reliability.

With no additional installation software required and its unique web browser interface for configuration and set up, the optoCONTROL 2520 laser micrometer is now even easier to use. The laser micrometer now runs on HTML5 and can be operated from a smartphone. A measurement chart displays limit values. In addition, the system provides various averaging and filter methods, as well as statistical features. Up to eight segments can be measured and output simultaneously. The user can also switch the display from Metric (mm) to Imperial (inch) measurement units.

OptoCONTROL sensors measure the dimensions, edges or gaps on a target using the ThruBeam ‘shadow’ principle. The transmitter produces a parallel light curtain that is transmitted via a lens arrangement into the receiving unit. The beam is interrupted if there is an object in the light path. The CCD camera in the receiver unit measures the ‘target’ contour formed by the shadow and outputs this as a geometrical value. The target object can be in any position within the light curtain. The smallest detectable diameter of the target object is approximately 0.5mm, which means the system can be used to measure small gaps or objects such as IC pins and pin strips in electronics production. The sensor is also suitable for detecting large objects, performing large distance measurements, counting tasks and roundness measurement. Up to eight segments of the target can be measured and output simultaneously.

As well as having an extremely compact design, the optoCONTROL 2520 also offers high accuracy and a maximum transmitter to receiver gap of 2 metres, which, unlike any other micrometer currently on the market, allows the target to be positioned at any point in the gap.

For more information on the optoCONTROL 2520, please call the Micro-Epsilon sales department on 0151 355 6070 or email info@micro-epsilon.co.uk


About Micro-Epsilon
Micro-Epsilon (www.micro-epsilon.co.uk) is a major global manufacturer of sensors, headquartered in Germany. The company's range of displacement sensors measure everything from to distance, position, vibration, dimensions and thickness, using both contact and non-contact measurement techniques. These techniques include 1D, 2D and even 3D laser-optical sensors and systems, eddy-current, capacitive, LVDT & inductive, potentiometric and draw-wire principles. In addition, Micro Epsilon has developed its own range of non-contact infrared temperature sensors that can measure virtually any target temperature from -40 to +3,300°C. The company also manufactures a comprehensive range of colour recognition sensors.

With more than 45 years' experience in the industry, Micro-Epsilon isn't just a sensor manufacturer. The company is highly innovative and understands the importance of providing complete solutions and support services for its customers. The firm is renowned for its expertise in consulting, development and application of industrial sensors to complex, customer-specific solutions for measurement, inspection and automation. The focus is on selling technical advantage to its customers.


For sales and technical information contact:-

Chris Jones
Micro-Epsilon UK Ltd.
Telephone: +44(0)151 355 6070
Fax: +44(0)151 355 6075
Email:
info@micro-epsilon.co.uk
Website:
www.micro-epsilon.co.uk

June 2015
