Micro-Epsilon UK Ltd. - PRODUCT NEWS




New high speed 70kHz confocal controller is ideal for high speed surface scanning, distance and thickness measurement applications

Precision sensor manufacturer Micro-Epsilon has launched a new high speed confocal sensor controller equipped with an integrated super bright LED light source, making it suitable for high speed (up to 70kHz) distance and thickness measurement applications, including high speed surface scanning and topography.

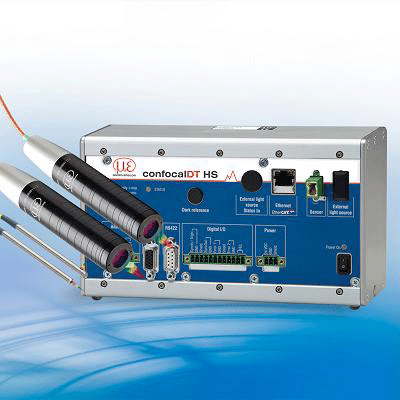

The new confocalDT 2471 confocal chromatic controllers are designed for high speed distance and thickness measurements of mirrored, transparent, shiny and diffuse surfaces. The controllers are compatible with all Micro-Epsilon confocal IFS series sensors.

The high light intensity enables reliable measurements on low reflectivity surfaces such as dark, matt objects or for multi-layer thickness measurement of transparent or translucent surfaces. In addition, the excellent signal-to-noise ratio of the confocalDT 2471 controller enables extremely precise measurements in the micron and sub-micron ranges.

Chris Jones, Managing Director at Micro-Epsilon UK comments: "The confocalDT 2471 is the fastest confocal controller available on the market today. It is unique in terms of measurement performance, with a short measurement cycle time, high lateral and axial resolution for surface and profile scanning applications, as well as fast compensation of changing surfaces."

The controller has a rugged design, sealed with passive cooling and no moving parts, ensuring high reliability in machine, OEM and in-process applications. For thickness measurement of transparent, multi-layer objects and surfaces, the IFC2471MP (multi-peak) controller enables measurements of up to six layers. Each surface can have individual refractive index coefficients set up, enabling the controller to output the corrected thickness values.

Set up and configuration of the controller and sensors is handled in a user-friendly, integrated web browser. The user simply connects to the controller via an Ethernet cable. Data output is via Ethernet, EtherCAT, RS422 or analogue output. High speed triggering for both leading and falling edge encoder signals is also incorporated, as well as smart filtering options.

The confocalDT 2471 is suitable for a wide range of applications including the measurement of cylinder liners (diameter, roundness, roughness and surface structure), maintenance of gas turbines (quality of the bearing race), roughness and surface inspection of micro-machined components.

For more information on the confocalDT 2471, please call the Micro-Epsilon sales department on 0151 355 6070 or email info@micro-epsilon.co.uk


About Micro-Epsilon
Micro-Epsilon (www.micro-epsilon.co.uk) is a major global manufacturer of sensors, headquartered in Germany. The company's range of displacement sensors measure everything from to distance, position, vibration, dimensions and thickness, using both contact and non-contact measurement techniques. These techniques include 1D, 2D and even 3D laser-optical sensors and systems, eddy-current, capacitive, LVDT & inductive, potentiometric and draw-wire principles. In addition, Micro Epsilon has developed its own range of non-contact infrared temperature sensors that can measure virtually any target temperature from -40 to +3,300°C. The company also manufactures a comprehensive range of colour recognition sensors.

With more than 45 years' experience in the industry, Micro-Epsilon isn't just a sensor manufacturer. The company is highly innovative and understands the importance of providing complete solutions and support services for its customers. The firm is renowned for its expertise in consulting, development and application of industrial sensors to complex, customer-specific solutions for measurement, inspection and automation. The focus is on selling technical advantage to its customers.


For sales and technical information contact:-

Chris Jones
Micro-Epsilon UK Ltd.
Telephone: +44(0)151 355 6070
Fax: +44(0)151 355 6075
Email:
info@micro-epsilon.co.uk
Website:
www.micro-epsilon.co.uk

October 2016
