Micro-Epsilon UK Ltd. - PRODUCT NEWS

Capacitive displacement sensors with threaded bodies simplify mounting

Precision sensor manufacturer Micro-Epsilon has extended its capaNCDT series of non-contact capacitive displacement sensors with a range of threaded housing options that enable faster, easier mounting of the sensors in industrial or process manufacturing environments.

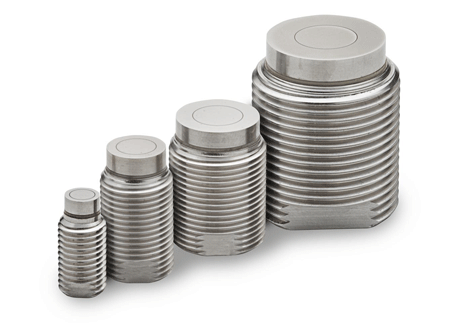

The new capaNCDT sensors with thread and socket are available in four sizes: M8, M12, M16 and M24, with measuring ranges of 0.5mm, 1.25mm, 2mm and 3mm respectively.

The capaNCDT series is available in different designs and versions. The sensors are differentiated by their measuring range, their design and by the technology used to manufacture them. In addition to the threaded housings, the capaNCDT series is also available in a cylindrical design with female connector/socket in measuring ranges from 0.05mm up to 10mm; in a cylindrical design with integrated cable in measuring ranges from 0.2mm up to 2mm; as flat sensors with integrated cable in measuring ranges from 0.2mm up to 2mm; or as gap sensors in measuring ranges from 0.9mm up to 9mm. Replacing the sensors can be executed without requiring any recalibration and within a short time.

Chris Jones, Managing Director at Micro-Epsilon UK commented: "Being able to offer our already comprehensive range of non-contact capacitive sensors with a threaded option is very important to many of our customers, who need to quickly mount multiple sensors into their production environments. This is a real differentiator for us in the market when customers are comparing suppliers of capacitive displacement sensors."

capaNCDT sensors operate on a non-contact, wear-free basis, achieving excellent results in terms of linearity, reproducibility and resolution.

Contrary to what many engineers may think, non-contact capacitive displacement sensors are not only suitable for use in clean environments such as laboratories, clean rooms and operating theatres. The latest sensors are designed to operate in dirty, dusty industrial environments too. While sub-micrometre precision is reached in typical industrial environments, high precision sub-nanometre measurements are possible in clean environments, where dirt, dust, oil or moisture are not present. The capaNCDT series is also suitable for the detection of fast moving objects and dynamic high speed processes, enabling fast, reliable measurements of motion sequences. Capacitive sensors are also suitable for use in vacuums and ultra high vacuum applications.

For special tasks, capaNCDT sensors and measurement systems can be modified according to a customer's specific individual requirements. Changes requested include, for example, modified designs, target calibration, mounting options, individual cable lengths, modified measuring ranges or sensors with integrated controller.

About Micro-Epsilon
Micro-Epsilon (www.micro-epsilon.co.uk) is a major global manufacturer of sensors, headquartered in Germany. The company's range of displacement sensors measure everything from to distance, position, vibration, dimensions and thickness, using both contact and non-contact measurement techniques. These techniques include 1D, 2D and even 3D laser-optical sensors and systems, eddy-current, capacitive, LVDT & inductive, potentiometric and draw-wire principles. In addition, Micro Epsilon has developed its own range of non-contact infrared temperature sensors that can measure virtually any target temperature from -40 to +3,300°C. The company also manufactures a comprehensive range of colour recognition sensors.

With more than 45 years' experience in the industry, Micro-Epsilon isn't just a sensor manufacturer. The company is highly innovative and understands the importance of providing complete solutions and support services for its customers. The firm is renowned for its expertise in consulting, development and application of industrial sensors to complex, customer-specific solutions for measurement, inspection and automation. The focus is on selling technical advantage to its customers.

For sales and technical information contact:-

Chris Jones
Micro-Epsilon UK Ltd.
Telephone: +44(0)151 355 6070
Fax: +44(0)151 355 6075

July 2018
