Novotechnik U.S. Inc. - PRODUCT NEWS




Industrial and Motorsport Angle Sensors

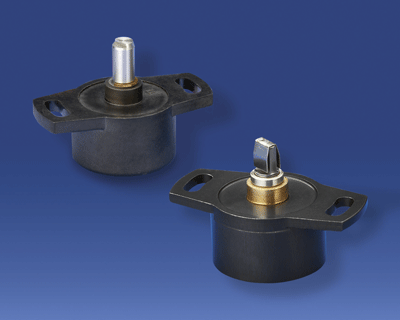

Novotechnik, U.S. announces three versions of the SP 2800 Series of rotary position sensors-industrial, redundant channel industrial
and motorsport.

The industrial version is offered in three standard electrical ranges: 0° to 100, 308 or 345° and custom ranges. It is sealed against dust, dirt and water ingress to IP 65 and repeatability is to = 0.03°. Independent linearity is = ±0.3 % for 308 and 345° models. Operating temperature range is 0 to 120°C with temporary, up to 1 hr operation, at 150°C. A two-channel electrically redundant version is available as well.

The motorsport version is offered in five electrical ranges: 0° to 100, 130, 308, 345 or 350°. It is sealed against dust, dirt and water ingress to IP 67 and repeatability is to = 0.01°. Maximum speed is 120 RPM. Operating temperature range is -40°C to +150°C continuously.

Common specifications for both versions include life of >50 million operations and mechanical range of 0 to 360° continuously. Maximum vibration is 20 g from 5
to 2,000 Hz.

Custom industrial versions are available in quantity.

__________________________________________________

For more information, please contact :-

Novotechnik U.S. Inc.

February 2018
