Curtiss-Wright Introduces Next Generation Rotary Position Sensors

New cost-effective design is ideal for specialist vehicle applications

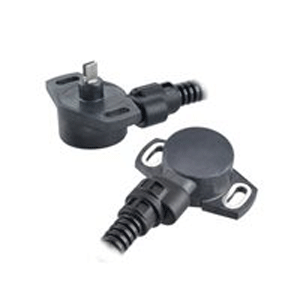

Curtiss-Wright’s Industrial division today announced the launch of the SRH301 and SRH302, a new range of shaft-operated, rotary position sensors offering an optimal combination of performance, safety and cost for OEMs designing vehicles and control systems.

With a low-profile sensor body depth of 17.3mm, and using the popular 28mm diameter flanged housing with crush-proof mounting zones, these sealed IP69K-rated sensors offer exceptional performance against water, dust, shock, vibration and temperature. The SRH301 and SRH302 rotary position sensors – from the Industrial division’s brand family of Penny & Giles - are ideal for use in challenging environments and as a cost-effective solution for medium-volume applications where a wide range of options or degree of customization may be required.

The sensors can be powered from either a 5Vdc regulated supply or from a varying voltage in the range of 9-30Vdc, such as a vehicle’s battery.

SRH301: The SRH301 is a 3-wire, single output variant with a supply current rating of less than 17.5mA.

SRH302: The SRH302 is a 6-wire, dual-redundant output variant with a supply current rating of less than 35mA. The dual-die sensor has two completely independent power connections and output channels for full electrical redundancy.

All variants of the SRH301 and SRH302 rotary position sensor use proven, wear-free Hall-effect sensing technology to provide a long mechanical life. There is a choice of two shaft configurations, both compatible with existing de-facto industry standards for straightforward inter-changeability on existing equipment. The electrical output spans of both models can be set to correspond to rotations of 20° to 360° in 1° increments. Factory-programmable electronics can be set to one of two analog voltage output ranges (0.5-4.5V or 0.2-4.8V) or one of three PWM frequencies.

Connection options are industry-standard AMP Superseal or Deutsch DT04 series connectors, or simple 18AWG flying-leads for customer termination. The sensor can also be supplied with a protective NC10 flexible conduit for the cabling.

The SRH301 and SRH302 are designed to complement Curtiss-Wright’s already highly-respected portfolio of rotary position sensors, which provide exceptional performance and safety for use in harsh or rugged environments.

Sales Inquiries: Please forward all sales and reader service inquiries to Curtiss-Wright Industrial, Tel: +44.1425.271444; email: cwig.uk@curtisswright.com.


About Curtiss-Wright Corporation
Curtiss-Wright Corporation (NYSE:CW) is a global innovative company that delivers highly engineered, critical function products and services to the commercial, industrial, defense and energy markets. Building on the heritage of Glenn Curtiss and the Wright brothers, Curtiss-Wright has a long tradition of providing reliable solutions through trusted customer relationships. The company employs approximately 10,000 people worldwide. For more information, visit www.curtisswright.com.

For more information, please contact :-

Curtiss-Wright Industrial Group – Penny & Giles
Christchurch, BH23 4HD. UK
Tel: +44 (01425-271444
Fax: +44 (0)1425-283201
e-mail:
mike.iles@curtisswright.com
Website:
www.cw-industrialgroup.com

June 2016
