Curtiss-Wright’s Industrial Division introduces New Rotary Position Sensor

Improved design streamlines installation

Curtiss-Wright’s Industrial division today announced it has launched a new non-contact, rotary position sensor from its brand family of Penny & Giles.

With an 8mm low-profile sensor body and a small footprint, this fully-encapsulated, IP68/IP69K-rated sensor offers exceptional levels of performance against water, dust, shock, vibration and temperature. The NRH300DP is ideal for use by OEMs of on- and off-highway vehicles that are destined for use in challenging environments, and as a cost-effective solution for medium volume applications where a select number of options or degree of customization may be required.

Benefits of the new NRH300DP rotary position sensor include:

* Non-contact sensing technology provides a long mechanical life

* Can be factory set to correspond to rotations of 20° to 360° in 1° increments

* Industry-standard 38mm mounting centers – for easy replacement or upgrades

* On-board diagnostic functions allow the two outputs to be put into safe, pre-defined states should an internal sensor error be detected

Additonal features include an innovative circuit design that allows the rotary position sensor to be powered from a regulated 5V supply or a varying voltage – such as a vehicle’s battery – in the range of 9 to 30V. Versatile, factory-programmable electronics can also be easily set to one of two analog voltage output ranges (0.5-4.5V or 0.2-4.8V) or one of three PWM frequencies.

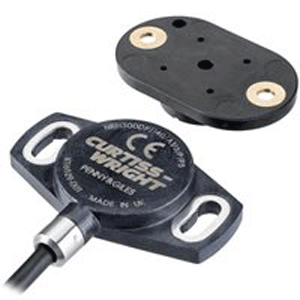

The NRH300DP uses proven, wear-free Hall-effect sensing technology and replaces the NRH280DP for new applications. The new design features a number of magnet arrangement options, and includes an over-molded magnet carrier that simplifies the interfacing of the magnet and sensor during installation. Optional bolt, plug or loose carrier variations are also available.

Sales inquiries: Please forward all sales and reader service inquiries to

About Curtiss-Wright Corporation
Curtiss-Wright Corporation (NYSE:CW) is a global innovative company that delivers highly engineered, critical function products and services to the commercial, industrial, defense and energy markets. Building on the heritage of Glenn Curtiss and the Wright brothers, Curtiss-Wright has a long tradition of providing reliable solutions through trusted customer relationships. The company employs approximately 10,000 people worldwide. For more information, visit

For more information, please contact :-

Curtiss-Wright Industrial Group – Penny & Giles
Christchurch, BH23 4HD. UK
Tel: +44 (01425-271444
Fax: +44 (0)1425-283201

June 2016
