CURTISS-WRIGHT INTRODUCES NEW CANBUS ROTARY POSITION SENSOR

New model expands NRH27x range and offers CANbus J1939 output
for specialty vehicle applications

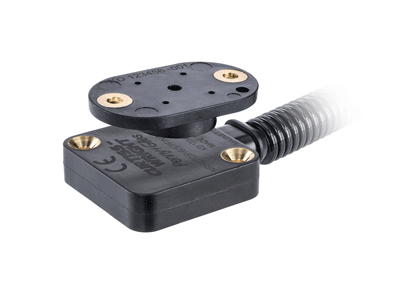

Curtiss-Wright’s Industrial division has announced the launch of the NRH27C, a non-contact rotary position sensor which is suitable for use on specialty on- and off-highway vehicles utilizing CANbus communications.

Developed by Curtiss-Wright’s legacy brand of Penny & Giles, the NRH27C extends the company’s recently-introduced NRH271 and NRH272 family and shares many similar features and benefits. These include a low-profile sensor body, small footprint, CANbus J1939 communications and a fully encapsulated, IP69K-rated design that offers exceptional performance against water, dust, shock, vibration and temperature. This makes the range ideal for use by OEMs of on- and off-highway vehicles that are destined for use in challenging environments, and as a cost-effective solution for medium volume applications where a degree of customization may be required.

Within the CAN messaging structure of the vehicle, the NRH27C’s two independent Hall-effect sensing signals allow for error checking of the positional data, which addresses the needs of safety-critical applications. Additionally, an on-board diagnostic function means predefined error messages can be sent to define the present state of the sensor. The versatile, factory-programmeable electronics can also be easily set to different Baud rate, Node ID and Frame rates according to system requirements.

• CANbus SAE-J1939 output
• Wear-free with no mechanical degredation
• Optimal combination of performance, safety and cost
• Concentric magnet assembly offsets up to 2mm
• Multiple magnet options

Contained in a 9.5mm low-profile housing and available with industry-standard AMP Superseal, Deutsch DT04 series connectors, or simple 18AWG flying-leads for customer termination, the NRH27C can be powered from a 5Vdc regulated or 9-30Vdc unregulated supply and provides a full 360° output range.

Sales Inquiries:
Please forward all sales and reader service inquiries to cwig.uk@curtisswright.com.

For more information on Curtiss-Wright Industrial products, visit www.cw-industrialgroup.com or call +44.1202.034000


About Curtiss-Wright Corporation
Curtiss-Wright Corporation is a global innovative company that delivers highly engineered, critical function products and services to the commercial, industrial, defense and energy markets. Building on the heritage of Glenn Curtiss and the Wright brothers, Curtiss-Wright has a long tradition of providing reliable solutions through trusted customer relationships. The company employs approximately 8,000 people worldwide. For more information, visit www.curtisswright.com.


For more information, please contact :-

Curtiss-Wright Industrial Group – Penny & Giles
Christchurch, BH23 4HD. UK
Tel: +44 (01425-271444
Fax: +44 (0)1425-283201
e-mail:
mike.iles@curtisswright.com
Website:
www.cw-industrialgroup.com

April 2017
