Variohm Eurosensor - PRODUCT NEWS

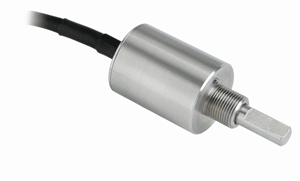

Low-power angle sensors

The recently announced low power version of the Vert-X 21 series angle sensor from the Swiss manufacturer Contelec is available exclusively in the UK from Variohm EuroSensor.

Aimed at power critical applications such as battery powered joysticks, radio controls or portable processing equipment, this non-contacting magnetic sensor has a reduced current consumption of less than 300 µA and voltage rating of between 1.8 and 5.5 VDC for a standard measurement range of 0 to 360 with 0.3% linearity. Furthermore, the Vert-X 21 may be ordered with optional user defined features that widen its application potential such as characteristic curve, index points, direction of rotation and programmable measurement angle.

At just under 23 mm diameter, the Vert-X 21 has compact dimensions which suit its use in restricted envelopes and is available. With a choice of servo or bush mounting housings in stainless steel, both 6 mm diameter ‘D’ shafts and 3.175 mm slotted shafts are offered, and the unit can be supplied with standard IP54 protection class or optional IP65. The sensor has an operational temperature rating of -40CºC to +125ºC and with no contacting sensor parts is suited to hostile environment applications where high accuracy, long-life and minimal maintenance are essential.

Variohm EuroSensor provides complete sales and application support across a comprehensive range of position, load, force and temperature sensor technologies and accessories for demanding measurement applications throughout industry and research.



For more information, please contact:-

Variohm-Eurosensor Ltd.
Tel: +44(0) 1327 351004
Fax: +44(0) 1327 353564
Email:
graham@variohm.com
Web:
www.variohm.com

October 2012
