Variohm Eurosensor - PRODUCT NEWS

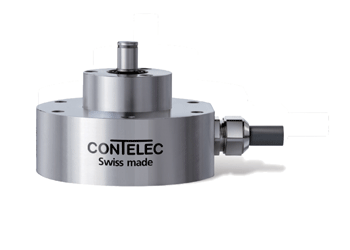

New from Variohm EuroSensor: Contelec’s Vert-X 88 rotary encoder suits ultra-heavy-duty applications

Available exclusively in the UK from Variohm EuroSensor, Contelec’s recently announced Vert-X 88 rotary encoder is specifically developed for ultra-heavy duty angular measurement in lifting, positioning and compacting mechanisms for waste disposal equipment, industrial waste presses, agricultural machines, construction vehicles and similar demanding applications.

The 88 mm diameter encoder is housed in sealed aluminium to IP69 or IP69K protection class with a contactless measurement technology that provides high accuracy and an extremely long life of at least 360 million movements. Its -40°C to +85°C temperature range and maximum resilience to shock and vibration combines with 300N axial and 400N radial shaft load ratings for exceptional reliability even in adverse environmental conditions. The Vert-X 88 has a continuous 360° degree range and is available in two sensor principle versions, offering a choice of 12- or 14-bit resolution. This provides a maximum linearity of 0.1% with a repeatability to 0.1° in half or fully redundant versions with industry-standard voltage, current and CANopen interfaces. The higher bit rate option offers optional index points, characteristic output curve, rotation direction sensing and user programmable angle setting. Further custom options include shaft dimensions, electrical connection and mechanical interfacing.

Variohm EuroSensor provides complete sales and application support across a comprehensive range of position, load, force and temperature sensor technologies and accessories for demanding measurement applications throughout industry and research.


About Variohm EuroSensor
Variohm EuroSensor designs, manufactures and sources a comprehensive range of sensor technologies for linear and rotary position, load, force, vibration and temperature - providing complete pre-sale and post-sale application support for demanding measurement applications throughout industry, agriculture, construction, autosports and research.



For more information, please contact:-

Variohm-Eurosensor Ltd.
Tel: +44(0) 1327 351004
Fax: +44(0) 1327 353564
Email:
graham@variohm.com
Web:
www.variohm.com

February 2015
