Variohm Eurosensor - PRODUCT NEWS

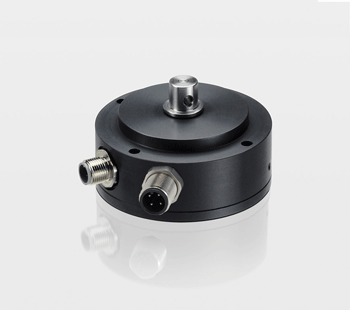

Angle sensing for extreme environments: Novotechnik’s new RSX-7900 rotary sensor provides performance, protection and safety

Further expanding Variohm EuroSensor’s range of precision positon sensors, the new RSX-7900 angle sensor from German manufacturer Novotechnik provides IP69K protection, extremely long life and ISO13849 PL-d safety compliance in a very robust non-contacting design that suits continuous duty in mobile construction and agricultural machinery, and other extreme environment applications.

The sensor is offered in six standard measuring ranges with angles from 0 … 60 to 360 degrees with unrestricted rotation. Range resolution is 12-bit across a 4…20 mA output with linearity specified at 2% at = 90 degrees, whilst repeatability is 0.2 degrees and update rate is 5 kHz. Single and dual redundant versions are available and the non-contacting NOVOHALL Hall Effect measurement technology yields a 100 million movement life even under the most arduous shock and vibration conditions. Redundant versions can be validated to ISO 13849 PL-d functional safety standard. Type E1 approval has also been obtained from the Federal Motor Transport Authority in Germany. (KBA). The heavy-duty RSX-7900 is also available with a CANopen interface.

The durable sensor design includes a fully sealed anodized aluminium housing with a stainless steel shaft for enhanced corrosion protection with salt and spray resistance. Axial and radial shaft loading is up to 300 N thanks to a double row angular contact ball bearing design. Although extremely ruggedized the compact 70 mm diameter sensor has a nominal length of only 35 mm and is available with a wide choice of shaft styles for maximum installation flexibility.

The RSX-7900 angle sensor operates from a generous 9 to 34 V DC input providing scope for 12 and 24 volt mobile vehicle systems and further flexibility for electrical connection includes cable gland and M12 connectors.


About Variohm EuroSensor
Variohm EuroSensor designs, manufactures and sources a comprehensive range of sensor technologies for linear and rotary position, load, force, vibration and temperature - providing complete pre-sale and post-sale application support for demanding measurement applications throughout industry, agriculture, construction, autosports and research.



For more information, please contact:-

Variohm-Eurosensor Ltd.
Tel: +44(0) 1327 351004
Fax: +44(0) 1327 353564
Email:
graham@variohm.com
Web:
www.variohm.com

July 2015
