Variohm Eurosensor - PRODUCT NEWS




New high-specification temperature probe offers extended performance at competitive cost

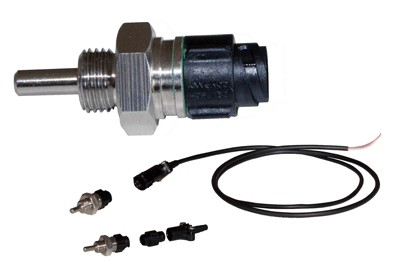

Variohm EuroSensor's new ETP-AM-SP-IMC temperature probes feature 316 grade stainless steel housings with convenient M10 screw-in interfaces and integral Deutsch IMC 'Ultem®' connectors for maximum durability and highest performance in demanding automotive, medical and industrial temperature measurement applications.

The new compact probes are available in both PT100/1000 and NTC10K sensor versions and with enhanced IP67 environmental sealing, offer improved working and short term temperature range ratings over competitively priced alternatives. Both versions encapsulate the sensor element in a 4 mm probe tip to ensure a rapid response time and furthermore the materials and construction are UL compliant, which will help OEMs with safety certification.

Variohm EuroSensor has primarily designed the new ETP-AM-SP-IMC series for high accuracy coolant and/or oil temperature monitoring on performance autosports and special-purpose vehicles. But with its fast response time, wide environmental temperature range and excellent resilience to moisture, oils and chemicals, the sensor is equally well equipped for demanding medical and industrial applications. They may be used for example for measurement of liquids and gases in ambient environments where steam sterilising or intense washdown is necessary, such as medical autoclave equipment or high-hygiene processing machinery.

The PT100/1000 sensor version has options for PT100B and PT1000A elements with working temperature from -55 to +180°C - whilst the NTC10K version temperature range is slightly reduced at the lower end, to -40°C. Both versions have a short term rating to +230°C and response time in still water (t90) of just 7 secs. Downloadable PDF datasheets covering the full specifications of the high accuracy probe series is available from Variohm EuroSensor's website at www.variohm.com

Optional accessories include kits with mating connectors or complete mating cable assemblies, which all feature the Deutsch IMC connector with its 'Ultem' high temperature and corrosion resistant composite material - to ensure the complete installation will yield the highest possible performance and reliability.

Variohm EuroSensor has also released a version of the probe with an integral FEP screened cable assembly which does not offer all of the advantages of the IMC connector version but will be of interest to customers with less demanding range and environmental durability requirements.

Variohm EuroSensor designs, manufactures and sources a comprehensive range of sensor technologies for linear and rotary position, load, force, vibration and temperature - providing complete pre-sale and post-sale application support for demanding measurement applications throughout industry, agriculture, construction, autosports and research.


About Variohm EuroSensor
Variohm EuroSensor designs, manufactures and sources a comprehensive range of sensor technologies for linear and rotary position, load, force, vibration and temperature - providing complete pre-sale and post-sale application support for demanding measurement applications throughout industry, agriculture, construction, autosports and research.



For more information, please contact:-

Variohm-Eurosensor Ltd.
Tel: +44(0) 1327 351004
Fax: +44(0) 1327 353564
Email:
graham@variohm.com
Web:
www.variohm.com

December 2015
