Variohm Eurosensor - PRODUCT NEWS

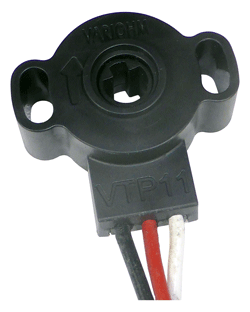

VTP11 rotary sensor offers 8 mm D-shaft mounting and well-proven resistive element technology

Variohm EuroSensor's new VTP11 rotary position sensor combines well-proven resistive element technology and convenient D-shaft mounting in a durable and low cost IP66 rated package that ensures reliable and long-life operation for high performance motorsports - especially for throttle positon sensing.


Variohm's conductive plastic track and multiple fingered wiper assembly has been designed to maintain full sensing contact even in the most arduous shock and vibration conditions. With a 97° measuring range and 5 k? throttle range resistance value from a 5…24 VDC input, the VTP11 will suit a wide variety of motorsports and specialist vehicle applications. The mechanical range of the sensor is 112° and its rated operational life is 5 million cycles. Temperature extremes from -25 to +125 ºC with short term peaks to 150 ºC for 15 mins are possible.

The motorsports-standard 8 mm D-shaft through-hole makes installation easy and fast without the need for a coupling, and makes possible form-fit interchangeability with competitive models. Radial slots for M4 screws on a 32.5 mm PCD in the highly resilient glass-filled PBT housing allow for generous mounting adjustment. Three wire connection via insulated leads is available on the standard model with connector options are available on request.

The new VTP11 D-shaft sensor joins Variohm's comprehensive range of throttle position, steering angle, suspension and gearbox sensors for demanding motorsports applications that offer resistive, analogue and digital outputs in both contacting, non-contact and contactless technologies, with a wide choice of mechanical interfacing options.

Variohm EuroSensor is a manufacturer, distributor and supply chain partner providing complete sales and application support across a comprehensive range of position, force, pressure, load, and temperature sensor technologies - for demanding measurement applications across industry, construction, agriculture, motorsports, research and more.


About Variohm EuroSensor
Variohm EuroSensor designs, manufactures and sources a comprehensive range of sensor technologies for linear and rotary position, load, force, vibration and temperature - providing complete pre-sale and post-sale application support for demanding measurement applications throughout industry, agriculture, construction, autosports and research.



For more information, please contact:-

Variohm-Eurosensor Ltd.
Tel: +44(0) 1327 351004
Fax: +44(0) 1327 353564
Email:
graham@variohm.com
Web:
www.variohm.com

March 2016
