Variohm Eurosensor - PRODUCT NEWS




Heavy duty encoders: BEI’s new LP series encoders suit extreme environments

The recently launched LP series low profile encoders from BEI Sensors are designed for high reliability position and speed feedback in harsh and challenging environments.

Available from BEI’s UK distributor, Variohm EuroSensor, the IP66 rated encoder utilises innovative sensing technology with a choice of incremental or absolute single-turn output that allows for accurate position and speed feedback for demanding applications in industrial manufacturing, processing industries, agriculture, oil & gas and building automation. The impressive environmental specification includes temperature extremes of – 40 to +100°C, and thanks to encapsulated electronics, shock is rated to 3000 m/s2 (5 ms 1/2 sine) with vibration to 200 m/s2 (55 to 2000 Hz).

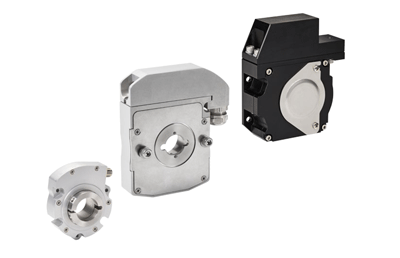

The LP series features an aluminium housing with a nominal square size of 90 mm and is offered in three model variants with programmable resolution versions and a wide choice of shaft interfacing and electrical termination options. A compact cable or connector version facilitates straightforward installation in confined spaces whilst a terminal box option makes safe pre-wiring a possibility. Both these options are offered with a width of just 26 mm whilst the third version is a 51 mm wide ATEX-IECx rated explosion proof model with a terminal box.

Incremental encoder versions have HTL-TTL outputs with a maximum resolution of 10,000 ppr and are optionally available with a programmable resolution which also provides commutation channels. Absolute versions feature a single turn resolution of up to 16-bits with an SSI output – also available as a programmable option. Enhanced electronics options on some models provide protection against mis-wiring, overvoltage protection up to 60V, and strong signal output for longer cable runs.

Variohm EuroSensor is a manufacturer, distributor and supply chain partner providing complete sales and application support across a comprehensive range of position, force, pressure, load, and temperature sensor technologies - for demanding measurement applications across industry, construction, agriculture, motorsports, research and more.


About Variohm EuroSensor
Variohm EuroSensor designs, manufactures and sources a comprehensive range of sensor technologies for linear and rotary position, load, force, vibration and temperature - providing complete pre-sale and post-sale application support for demanding measurement applications throughout industry, agriculture, construction, autosports and research.



For more information, please contact:-

Variohm-Eurosensor Ltd.
Tel: +44(0) 1327 351004
Fax: +44(0) 1327 353564
Email:
graham@variohm.com
Web:
www.variohm.com

May 2016
