Durable and precise rotary angle measurement: Contelec’s Vert-X 79 rotary encoder suits heavy-duty applications

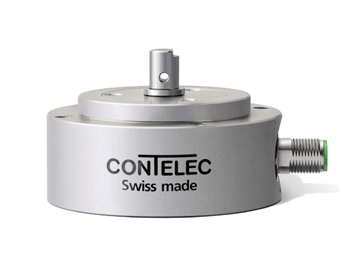

New from Contelec A.G. and available exclusively in the UK from Variohm EuroSensor, the Vert-X 79 magnetic rotary encoder is designed for high accuracy angular measurement on construction machines and heavy-duty mobile vehicle applications where extreme conditions call for the highest levels of durability.

With the convenience of straightforward application adaptation through its MH-C and MH-C2 technology, output interfaces include 0.1 to 10 V, 4 - 20 mA and CANopen with optional half and fully redundant versions available. The Vert-X 79 series has a 0 … 360 degree continuous range with a choice of 12- to 16-bit resolution depending on the output type with independent linearity down to 0.1% of the measuring range. Contelec’s contactless magnetic measuring principle ensures long life whilst the robust aluminium housing with IP68 / IP69K protection ensures maximum durability for extremes of humidity, dampness, dust, and vibration.

The compact sensor has an outer diameter of 79 mm with overall height of just 50mm and electrical interfacing is via an M12-m connector. Series options include special characteristic curves, factory programmed electrical angle within a range of 30° to 360° as well as support for field-programmable direction, range and index points. The CANopen version also offers custom bit-rate to 1000 Kbits/sec. Other customisation options include shaft and housing modifications, and alternative electrical connection.

The Vert-X 79 can be supplied with a driving disc that can be used as a coupling element for the rotating drive mechanism. This connection method allows precise measurements even under radial impact and can tolerate a high level of axial misalignment.


About Variohm EuroSensor
Variohm EuroSensor is a manufacturer, distributor and supply chain partner providing complete sales and application support across a comprehensive range of position, force, pressure, load, and temperature sensor technologies - for demanding measurement applications across industry, construction, agriculture, motorsports, research and more.


About Ixthus
Ixthus works closely with leading global suppliers of non-contact sensing technologies as well as force, torque and vibration sensor and transducer manufacturers, providing a complete service with its knowledgeable technical staff available to solve customers' measurement problems - from the first enquiry to complete after-sales support.
About Variohm Holdings
Comprising four closely linked operating divisions, staffed by highly experienced motion and sensor application specialists with extensive knowledge of international standards; Variohm Holdings combines its considerable design and manufacturing capability with best of brand products and components from leading global partners to provide engineered solutions that are seamlessly and cost effectively integrated for your application.
About Variohm EuroSensor
Variohm EuroSensor is a manufacturer, distributor and supply chain partner providing complete sales and application support across a comprehensive range of position, force, pressure, load, and temperature sensor technologies - for demanding measurement applications across industry, construction, agriculture, motorsports, research and more.
