Variohm Eurosensor - PRODUCT NEWS






Robust diaphragm pressure switching up to 10 bar: Membrane pressure switch targets HVAC, pneumatic and process applications

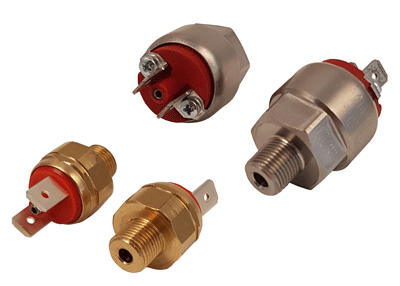

Variohm EuroSensor has launched a new range of robust diaphragm-type pressure switches aimed at demanding HVAC and industrial processes for air, water, hydraulic fluid and other oil mediums in measuring ranges from 0.3 to 10 bar. Available in a choice of brass (EPS01) or stainless steel (EPS02) housings, these competitively priced switches offer generous overpressure limits and a choice of NBR or Viton® diaphragm materials for maximum application flexibility.

The new EPS01 and EPS02 series pressure switches feature a G 1/8 pressure port as standard with other fastening thread options available for larger quantities. Designed for any mounting orientation, versions are available for single pole operation with NC or NO contacts in pressure ranges of 0.3 to 2 bar and 1 to 10 bar. The integrated micro switch is available with silver plated contacts as standard for the EPS01, and with silver or gold plated switches optionally available for the EPS02.

The media temperature range of -25 to +85 °C and a switch point accuracy of under 10% will suit a wide range of switching tasks whilst a mechanical life of over 1 million cycles and a switching frequency of 200/min helps to ensure more than satisfactory performance requirements.
Both models also feature a maximum switching load of 2.0 A (resistive), a 100 VA breaking capacity and reference voltage of 42 V. Electrical connection is via flat 6.3 mm terminals. The slightly smaller, brass-housed EPS01 has a 17 mm AF hexagonal fixing whilst the stainless steel EPS02 model has 19 mm AF fixing.

The EPS01 and EPS02 are part of a universal family of pressure switches from Variohm EuroSensor. A third range, the EPS03, covers spring-loaded diaphragm or piston actuation with a micro switch switching element in a tough galvanised steel housing for pressure switching up to 350 bar.

The new pressure switches are part of a wide range of position, force, pressure, load, and temperature sensor technologies available from Variohm EuroSensor - a manufacturer, distributor and supply chain partner providing complete sales and application support for demanding measurement applications across industry, construction, agriculture, motorsports, research and more.


About Variohm EuroSensor
Variohm EuroSensor is a manufacturer, distributor and supply chain partner providing complete sales and application support across a comprehensive range of position, force, pressure, load, and temperature sensor technologies - for demanding measurement applications across industry, construction, agriculture, motorsports, research and more.


About Ixthus
Ixthus works closely with leading global suppliers of non-contact sensing technologies as well as force, torque and vibration sensor and transducer manufacturers, providing a complete service with its knowledgeable technical staff available to solve customers' measurement problems - from the first enquiry to complete after-sales support.
About Variohm Holdings
Comprising four closely linked operating divisions, staffed by highly experienced motion and sensor application specialists with extensive knowledge of international standards; Variohm Holdings combines its considerable design and manufacturing capability with best of brand products and components from leading global partners to provide engineered solutions that are seamlessly and cost effectively integrated for your application.

For more information, please contact:-

Variohm-Eurosensor Ltd.
Tel: +44(0) 1327 351004
Fax: +44(0) 1327 353564
Email:
graham@variohm.com
Web:
www.variohm.com

February 2018
