Cable sensors for long travel position control: Variohm EuroSensor draw wire sensors control roll and pitch flight simulator movement

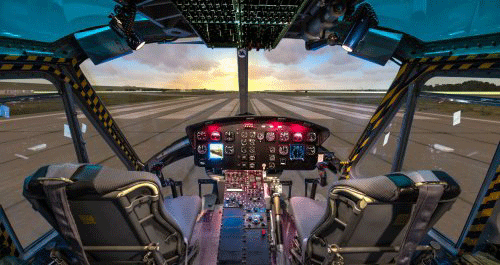

Happy Landings Flight Simulations GmbH build and run technically sophisticated flight training simulators that have equal appeal for leisure users and budding pilots.

With six highly detailed simulator models covering a range of aircraft types including helicopters, jets and commercial airliners, they include motion controlled replicas of real cockpits and surround screen HD graphics for terrestrial features and international airports.

To improve the performance and reliability of the roll and pitch axes for its Cessna C172 ‘Skyhawk’ simulator, Happy Landings have recently replaced gear mechanics and rotary potentiometers with SP1 and SM1 draw wire position sensors from Variohm EuroSensor.

As directly coupled measurement devices, the draw-wire (or cable extension transducer) solution reduces the potential for lost motion in the control system and improves the control sensitivity - and ultimately enhances the flying simulation experience. The SP1 series draw wire sensor provides a robust and compact position measurement solution for up to 1.27 metres travel whilst the miniature SM1 has the ability for even more compact installation for travel lengths to 0.63 metres. For this application both sensors are configured for voltage divider output from integral potentiometers with a measurement resolution which is essentially infinite and repeatability in the region of 0.5% full scale. A sturdy nylon-coated stainless steel cable connects the moving load to the potentiometric sensor through a spring loaded winch mechanism. Typical working life is more than 2.5 million cycles. Featuring durable polycarbonate housings with multiple mounting points they are easily installed and do not require perfect alignment.

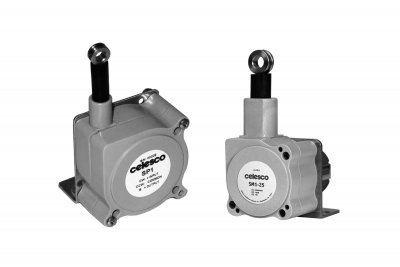

Variohm’s SP1 and SM1 draw wire sensors

Draw wire sensors may also be specified with IP67 protective housings for use in harsh outdoor environments where long travel, high accuracy linear position measurement is required. A wide range is available from Variohm EuroSensor with optional mechanical fixings, selectable voltage and current outputs as well as CANopen, SSI and other fieldbus interfaces if required. Draw wire sensors are well proven for positioning and linear measurement tasks in demanding applications such as high performance car throttle controls, elevating bridge and crane controls, heavy industrial equipment, agricultural and construction machinery.

Variohm EuroSensor is a UK designer, manufacturer and distribution partner for leading global sensor component suppliers offering a comprehensive range of sensor technologies including linear and rotary position, load, force, vibration and temperature. Variohm provides complete pre-sale and post-sale application support for demanding measurement applications throughout industry, agriculture, construction, autosports and research.

More information on Happy Landings Flight Simulations >>


About Variohm EuroSensor
Variohm EuroSensor is a manufacturer, distributor and supply chain partner providing complete sales and application support across a comprehensive range of position, force, pressure, load, and temperature sensor technologies - for demanding measurement applications across industry, construction, agriculture, motorsports, research and more.


About Variohm Holdings
Comprising four closely linked operating divisions, staffed by highly experienced motion and sensor application specialists with extensive knowledge of international standards; Variohm Holdings combines its considerable design and manufacturing capability with best of brand products and components from leading global partners to provide engineered solutions that are seamlessly and cost effectively integrated for your application.

For more information, please contact:-

Variohm-Eurosensor Ltd.
Tel: +44(0) 1327 351004
Fax: +44(0) 1327 353564
Email:
graham@variohm.com
Web:
www.variohm.com

November 2018
