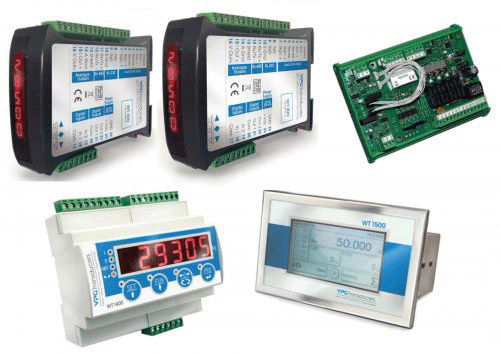

The new W-series – clockwise from top left, WT1, WT2, WG3, WT15 and WT14


Variohm expands weighing indicator range: New range of weighing indicators offer choice of mounting, interfacing, function and cost

Variohm EuroSensor has added a new line of weighing indicators that will fulfil the cost and performance requirements for a wide range of counting, check weighing and platform scale applications across industries such as food & beverage, packaging, agricultural equipment, weighbridges and more.

The new W-series offers four models for DIN-rail and panel mounting with entry level to advanced interfacing and a choice of output, display and interactive functionality. Covering 4 or 8 load cell inputs up to 350 O, the range includes an ATEX compatible model and an electronic overload guard for redundant operation.

The cost effective WT1 model has DIN-rail mounting and with either RS232C half-duplex or RS485 full duplex serial doors may be loaded with ASCII or Modbus RTU protocols to enable communication with a PC or PLC. The indicator has an internal resolution of 16 x 106 counts and a 5 digit, 7 segment LED display has a resolution of 16,000 counts, with a three- key mechanical keyboard providing easy access for pre-programmed functions.

The WT2 weighing indicator builds upon the WT1 with connectivity via PROFIBUS as its default protocol offering the ability for control in more complex systems. The WT2 also features an optional Ethernet connection which comes with a 128-byte in/out buffer for high-speed PC connections.

For almost any application where DIN-rail mounting is required, the WT14 weighing indicator features RS232 and RS485 serial ports and a USB device port as standard. Fieldbus options that allow interfacing with the vast majority of supervision devices include PROFINET, DeviceNet, Ethernet (10 to 100 Mbps), Ethernet IP and EtherCAT. The model features expanded storage capability and a 6 digit, 7 segment, LED display with a visible resolution of 999,999 counts - plus a four-key capacitive keyboard for easy access to the configuration and calibration functions.

At the top end of the range, the panel mounted WT15 weighing indicator boasts a smart multi-lingual touch-screen and a 32-bit ARM Cortex microprocessor that provides impressive computing power for a wide range of industrial and commercial weighing applications. With 6+6 opto-isolated input and output ports, and multiple serial bus output options, the WT15 has all the fieldbus capability of the WT14 model but offers a more sophisticated solution for complex automated weighing tasks. An ATEX-certified version is available for use in potentially explosive environments.

All weighing indicator models offer optional analogue outputs and suitability for intrinsically safe barriers for use in hazardous areas. Performance specifications through the range include input sensitivity to 0.02 V/division and linearity to <0.01% of full scale with 24-bit D to A conversion.

The DIN-rail mountable WG3 electronic overload guard is a compact redundant safeguarding system for prevention of weighing machine overload. With two independent inputs for load cells it meets the category 3 EN 13849-1:2008, PL d standard. The double security load limiter design includes an integrated alarm for load cell malfunction or power failure.

Variohm EuroSensor is a UK designer, manufacturer and distribution partner for leading global sensor component suppliers offering a comprehensive range of sensor technologies including linear and rotary position, load, force, vibration and temperature. Variohm provides complete pre-sale and post-sale application support for demanding measurement applications throughout industry, agriculture, construction, autosports and research.


About Variohm EuroSensor
Variohm EuroSensor is a manufacturer, distributor and supply chain partner providing complete sales and application support across a comprehensive range of position, force, pressure, load, and temperature sensor technologies - for demanding measurement applications across industry, construction, agriculture, motorsports, research and more.


About Variohm Holdings
Comprising four closely linked operating divisions, staffed by highly experienced motion and sensor application specialists with extensive knowledge of international standards; Variohm Holdings combines its considerable design and manufacturing capability with best of brand products and components from leading global partners to provide engineered solutions that are seamlessly and cost effectively integrated for your application.
