Narrow success for solids radar level sensor - Unique solution provided with contactless radar level sensor
A non contact bulk solids radar sensor with 120m range? You think this would be featuring an application with measurement over many tens of metres. However, one of the first successful applications for the new VEGAPULS 69 - the latest generation of bulk solids level sensors - demonstrates its great versatility. At a UK Waste processing facility a device is now installed and working in a difficult application over a very short range of just over 2 metres - down a very tall nozzle, through a valve and into a confined vessel.
The application is in a high temperature ash outlet from a gasification process where, via a screw conveyor, the hot waste, at around 400°C and under a vacuum, is deposited into a metal barrel container inside sealed cabinet. The barrel level needs to be monitored for changeover - when this is required, the process vacuum is protected by a valve, which closes while the cabinet is door is open. This valve is also the portal that the level measurement must be made through and, of course the sensor has to be contactless to measure through it.

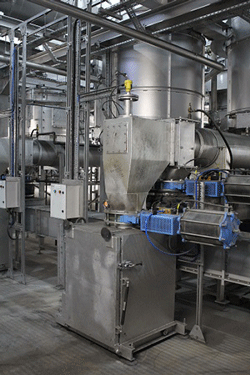

Figure 1: VEGAPULS 69 Radar on waste collector, installed high above the valve and barrel cabinet
Weighing was not an option, as the ash density varies too much, and the very high temperatures would cause issues for most other technologies considered. Other measurement challenges include; very high levels of dust and fumes, vacuum, changing particle size and density, no air purging or cooling allowed due to the combustion method, as well as the falling waste stream as it drops through the same valve into the barrel.
The original radar level sensors used have worked well with no signal loss, but ash build up and sublimation of vapours, in the narrow confines of the mounting tube and around the valve aperture, have caused periodic problems for the operators over the long term. This was because the radar sensors, although carefully installed and set up with false signal suppression, did not have a narrow enough beam angle to avoid the build up, which was causing intermittent high/full barrel levels. Cleaning the internal structures cured these issues, but it was not an easy task, was time consuming and it interrupted the process.
A new VEGAPULS 69 radar is now installed in its place. It has much narrower focussing (3.5°), the device therefore has no interfering echoes from the nozzle or the 6/150mm diameter slide valve, which is approximately 0.8m away from the sensor. The set up was quick and simple, virtually no false signal suppression required and it is able to measure directly right down into the barrel, with no loss of signal from the prevailing process conditions.
This increased reliability means that the process is now more productive and change-overs only called for when needed. Because the measurements are more accurate and the high levels can be more confidently anticipated, the operators can coordinate more efficient change over sequences, saving time and increasing safety. While this new radar has shown excellent near range performance remember it has a range of up to 120m, enough for the largest of silos, and it also has a fast responsive output, which means it can be used on conveyors and object monitoring applications too.

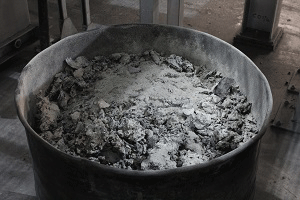

Figure 2: Waste Ash in the barrel
This new radar technology takes yet another big step closer to a universal solution for solids level measurement. ATEX dust and Gas certified with Profibus and FF outputs are among the available options. Contact VEGA for a demonstration with a battery powered device or to arrange a trial in your application.
