WIKA Instruments Ltd. - PRODUCT NEWS

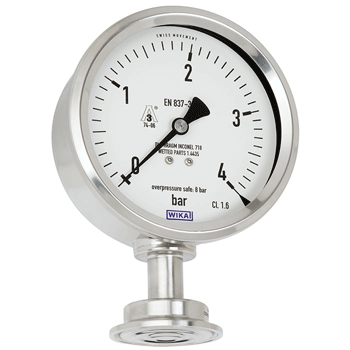

New diaphragm pressure gauge for hygienic processes

From hygienic case design to small process connections: WIKA has tailored its new PG43SA-S diaphragm pressure gauge to the requirements of sanitary applications.

With this, there is now also a mechanical measuring instrument available for safe pressure monitoring in hygienic applications. Its measuring principle, with a flush welded diaphragm, enables mechanical pressure transmission, whereby the risk of product contamination through a transmission fluid is eliminated. As a result of its high overpressure safety, the instrument can also withstand critical process conditions.

The operational flexibility of the PG43SA-S is supported through a large selection of small process connections - for example, to DIN 32676 (clamp) or to DIN 11864. Tested in accordance with 3-A Sanitary Standards, the pressure gauge with hygienic case is CIP, SIP and wash-down capable. It can thus be cleaned reliably and time-efficiently. An easily accessible zero adjustment on the top of the case enables calibration if needed.

For more information, please contact:-

WIKA Instruments Ltd.
4 Gatton Park Business Centre, Wells Place, Merstham, Redhill RH1 3LG. UK
Tel: + 44 (0) 1737 644 008
Fax: + 44 (0) 1737 644 403

March 2016
