Waycon Positionmessetechnik GmbH - PRODUCT NEWS

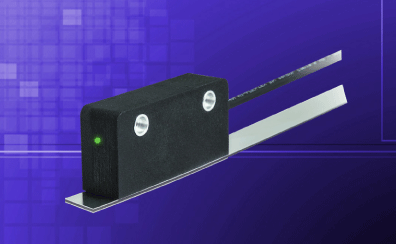

Absolute Analogue Magnetic Scales MXAX and MXAZ

The MXAX and MXAZ magnetic scales are absolute linear measuring systems for minor linear displacements up to 1250 mm. They’re ideal for harsh environmental conditions (heavy-duty sensor) occurring in commercial vehicles with telescope systems or in hydraulic cylinders, for example.

They have a broad spectrum of applications: absolute magnetic scales are also suitable for industrial trucks, forklifts, lifting platforms, or loading platforms.

The magnetic scale combines several advantages with a low price. The Macromelt® housing is particularly robust and encloses both the magnetic sensor and the electronics. The high protection factor of IP68 and IP69K withstands the majority of aggressive industrial environments. The sensor is therefore highly resistant to dust, dirt, moisture, moisture, oil, grease, and UV rays.The thermoplastic housing further protects the sensor from oscillation, mechanical strain, shock, and vibration.

The sophisticated magnet technology allows for non-contact measurement, thus guaranteeing stable measurements, maintenance-free operation, and a long operating life. The sensor’s mounting tolerance of up to 2 mm ensures easy installation without extensive adjustment.

Analogue signal outputs are available with 4…20 mA current or 0…10 V voltage. Thanks to the Teach Function, the sensor is easily scaled to the required axis, and only the start and stop point need be defined. The absolute magnetic scales reach an accuracy of up to ±2 µm at an operating temperature between -25 and +85 °C. Magnetic tapes have a good accuracy to travel speed ratio of max. 5 m/s. The position is refreshed every 100 µs for a maximum repeatability of ±1 increment. The status LED aids visual diagnosis and programming of the magnetic scale. The MXAX and MXAZ series are absolute linear systems, so the sensor head can reliably determine its exact position, even in the event of a mains failure.

MXAX and MXAZ magnetic scales are combined with an encoded magnetic tape which is highly resistant to dirt and external contamination: it only needs to be affixed.

About Waycon
WayCon Positionsmesstechnik GmbH has been developing and manufacturing precision sensors for position and distance measurement since 1999. As an innovative company with headquarters in Taufkirchen near Munich and a branch in Brühl near Cologne, we sell our products all over the world. Our goal is to provide our customers with the best possible measurement technique solution: from high-quality sensors from the standard range to customer-specific solutions, from prototype to series production - for the most varied applications in industry and research. The products made in Taufkirchen are subject to rigorous quality standards and every single one is delivered to our customers with a calibration certificate.

For more information, please contact :-

WayCon Positionsmesstechnik GmbH
Marcus Venghaus
Mehlbeerenstraße 4
82024 Taufkirchen

Waycon Positionsmesstechnik GmbH
Mehlbeerenstr. 4
82024 Taufkirchen
Fon: +49 (0) 89 - 6797130
Fax: +49 (0) 89 - 679713250

February 2018
