Applied Measurements Ltd. - PRODUCT NEWS





How to measure position outdoors on mobile machinery without water damage

Ideal to measure position on outdoor mobile machinery.
Need to measure position outdoors on cranes, vehicles and mobile machinery?
Worried about water damaging your draw-wire sensor?

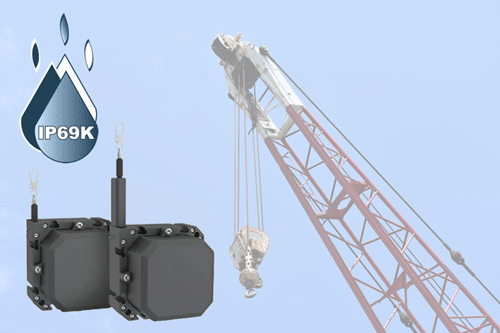

Try the new K100 IP69K, steam-jet cleaning protected, draw-wire sensor.

K100 IP69K Outdoor Draw-Wire Benefits

* IP69K Protection from High Pressure and Steam Jet Cleaning
* Robust Housing
* Large Measuring Range 0-2.3m up to 0-5m
* Crane, Vehicles & Mobile Machines
* High Accuracy ?± 0.2 % Full-Scale Output
* Output Options: 4-20mA, 0-10Vdc or Potentiometer

Increased Protection to Measure Position Outdoors
The K100 outdoor draw-wire sensor has the maximum protection rating of IP69K, meaning it is totally protected from dust and protected from high pressure, steam-jet cleaning. This makes it ideal to measure position outdoors on vehicles, agricultural and mobile machinery, where high-pressure and high-temperature washdowns are routine.

Distinct Design & Robust Housing
Its robust housing has been specially designed to incorporate separate drum and spring spaces, which deliver added protection against environmental influences.
Plus, it is constructed of glass-fibre reinforced plastic to guarantee its reliability in the toughest of applications.

Large Measuring Range 0-2.3 metres to 0-5 metres
The IP69K draw-wire sensor has a long-range capacity from 0-2.3m up to 0-5m, making it ideal for large scale, outdoor measuring applications.

Ideal Applications for the K100 IP69K Draw-Wire Sensor
* Road Vehicles
* Mobile Machines
* Cranes
* Lifting Technology
* Agricultural Industry

The K100 IP69K draw-wire sensor lends itself to outdoor vehicles and machine applications that require regular high-pressure, steam cleaning.

Delivery & Prices
Email or call us today on (+44) 0118 981 7339. Fast delivery of 3-4 weeks.

See our range of draw-wire sensors with capacities starting from as low as 0-40mm right up to 0-50m.


About Applied Measurements Ltd
Applied Measurements Limited offers a comprehensive selection of transducers based on strain gauge technology. Our product range includes sensors to measure load, pressure, torque and displacement. In addition, a custom transducer design service and strain gauge bonding facilities are also available.
To support the transducer range, a variety of analogue and digital instrumentation is available including high resolution, high speed and RS232/485 equipped signal conditioners and indicators, as well as portable battery powered indicators with integral data-logging, enabling us to offer complete systems with calibration traceable to UKAS standards.
In addition to our comprehensive range of 'standard' transducers, we also have the capability to design, develop and manufacture custom devices to meet specific needs. Our expertise is based on bonded strain gauge technology, which is carried across our complete line of transducers. Our involvement in your project can be at any stage, from development and design, through prototypes, testing and into full production.
