How to get strain gauge readings instantly to your phone or tablet

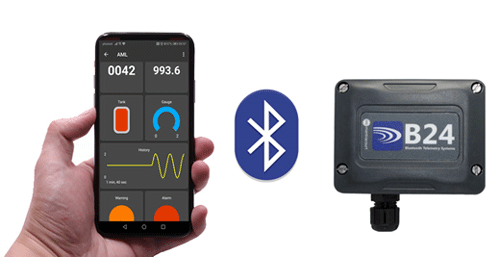

With the new B24-SSB Bluetooth strain transmitter, you can have instant wireless Bluetooth signal from your strain gauge sensor sent directly to your mobile phone or tablet.

Its fantastic benefits include:

* Instant Bluetooth Readings using BLE
* Wide Input Sensitivity Range: +/-6mV/V, +/-12 mV/V, +/-24 mV/V, +/-48mV/V
* Transmission Range up to 90m
* Monitor up to 12 Transmitters on a Single Mobile Device
* IP67 Immersion Protected Enclosure or OEM Board Only Versions
* High Measurement Resolution - 5 Settings Available
* FREE iOS & Android App with Advanced PIN Protection

DOWNLOAD THE DATASHEET >>

Wide Sensitivity Input +/- 6mV/V, +/- 12 mV/V, +/- 24 mV/V, +/- 48mV/V

You can choose from 4 different sensitivity input ranges of +/- 6mV/V, +/- 12 mV/V, +/- 24 mV/V, +/- 48mV/V, depending on the output of your sensor, which allow it to accurately deliver measurements to a transmission range of between 30m to 90m line of sight (depending on the age and quality of the viewing device).

High Measurement Resolution - 5 Settings Available
There are five different settings available which are switchable within the Bluetooth strain transmitter. The resolution ranges from 14.25 bits (best battery life) to 16.75 bits (30% battery life). It can produce a noise-free resolution of 1 in 92000 counts (16.5 bit) when using a 3mV/V sensor and 1 in 184,000 counts (17.5 bit) with a 6mV/V sensor, giving you more useable results.

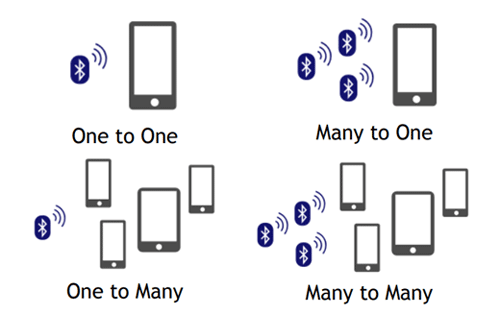

Single or Multiple Receivers Simultaneously

The B24-SSB uses Bluetooth Low Energy (BLE) to deliver the data to single or multiple Bluetooth receivers simultaneously. Plus, multiple B24-SSB Bluetooth strain gauge transmitters can be used to send data to a single Bluetooth receiver or multiple Bluetooth receivers, making this ideal for multi-sensor and multi-channel setups.

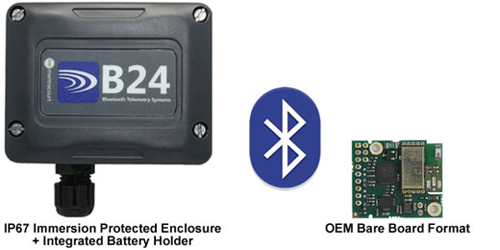

Versatile Integration IP67 Enclosure or OEM Format
For easier integration into your application, the B24-SSB Bluetooth strain transmitter is available in 2 versions.

1. An IP67 dust-tight and immersion protected enclosure with an integrated battery holder.
2. The bare board, suitable for direct integration for OEM applications.

FREE & Secure iOS & Android App
The mobile app interface displays the data from your strain gauge sensor in real-time and on highly configurable dashboards. The data can be viewed as digital displays, gauges, tanks and charts and defined as mathematical expressions. Plus, it has an export feature to enable simple sharing and importing of pre-made dashboards to save you setup time. The app also assists the configuration and calibration of the B24-SSB Bluetooth strain transmitter.

Advanced PIN protection ensures that users cannot view or alter the information without the correct access. Thanks to the View PIN, Configuration PIN and Calibration PIN, you can be certain that your data is secure.

How Fast Can I Get It?
Order today and you can have the B24-SSB Bluetooth strain gauge transmitter in 1 week from £225.00 in enclosure (exc. VAT) and £152.00 OEM board version (exc. VAT). Call us on (+44) 0118 981 7339 or email us.

DOWNLOAD THE DATASHEET >>

For more information >>



About Applied Measurements Ltd
Applied Measurements Limited offers a comprehensive selection of transducers based on strain gauge technology. Our product range includes sensors to measure load, pressure, torque and displacement. In addition, a custom transducer design service and strain gauge bonding facilities are also available.
To support the transducer range, a variety of analogue and digital instrumentation is available including high resolution, high speed and RS232/485 equipped signal conditioners and indicators, as well as portable battery powered indicators with integral data-logging, enabling us to offer complete systems with calibration traceable to UKAS standards.
In addition to our comprehensive range of 'standard' transducers, we also have the capability to design, develop and manufacture custom devices to meet specific needs. Our expertise is based on bonded strain gauge technology, which is carried across our complete line of transducers. Our involvement in your project can be at any stage, from development and design, through prototypes, testing and into full production.

For more information, please contact :-

Applied Measurements Ltd.
Tel: +44(0)118 981 7339
Fax: +44(0)118 981 9121
Email:
info@appmeas.co.uk
Website: https://.appmeas.co.uk

March 2020
