New: Intelligent SDI-12 depth sensor with microprocessor makes complex readings simple!

The new

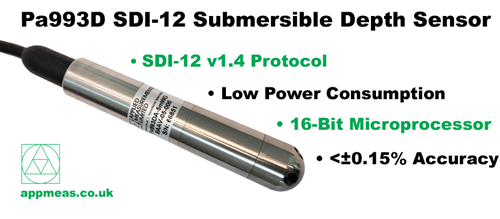

Pa993D SDI-12 submersible depth sensor uses an SDI-12 v1.4 communication protocol, comes in capacities of 0-1mWG up to 0-100mWG and can perform complex linearisation and calibrations, all thanks to its embedded 16-bit microprocessor. Here's why we think it would benefit you.

What is SDI-12 protocol?

SDI-12 stands for serial data interface at 1200 baud. It is a standard communication protocol for interfacing intelligent microprocessor sensors to a data logger.

Benefits of the Pa993D SDI-12 submersible depth sensor:
* Enables Complex On-Site Calibrations
* Low Power Consumption: <4mA - Ideal for Battery or Solar-Powered Applications
* Low System Cost
* Interchangeable Sensors - Reduce Costly Downtime
* Easy Multiple Sensor Setup
* Compact Ø23mm
* Level and Temperature Readings as Standard
* Accuracy <±0.15%/FS (Optional 0.1% and 0.06% Versions)
*
READ THE SPEC

Embedded 16-bit microprocessor guarantees high accuracy
The Pa993D SDI-12 submersible depth sensor has a built-in 16-bit microprocessor which enables it to perform complex high-level linearisation, temperature compensation plus self-calibrations via the SDI-12 communication protocol. Plus, the integrated temperature sensor also offers built-in density correction, all of which delivers optimum stability and ensures a high accuracy of less than ±0.15% full scale (0.1% and 0.06% optional).

As the embedded microprocessor inside the depth sensor controls the SDI-12 interface, it can accept instructions from a datalogger, perform the measurements and complex calculations, then transfer the data back to the datalogger via the SDI-12 communication protocol.

Interchangeable sensors and simple multi-sensor setups
Thanks to this 2-way SDI-12 communication interface, SDI-12 sensors can be switched out without the need to reprogram the datalogger, saving your application costly downtime. Plus, up to nine Pa993D SDI-12 submersible depth sensors can be connected to a single datalogger, giving you a simple and low-cost, multi-sensor setup.

Low power consumption
The Pa993D SDI-12 submersible depth sensor is ideal for battery-powered and solar-powered applications as it can operate on as low as a 6Vdc supply. Its low power consumption means it can operate unattended and for long periods of time.

Submersible to 10bar / 100m depth
Its 316 stainless steel silicon element, with choice of seals, plus its waterproof moulded cable assembly guarantees the sensor's high integrity to 100m depth. This IP68 submersible rating makes it ideal for continuous operation in rivers, reservoirs and borehole applications where the sensor will be needed to operate reliably underwater on a long-term basis.

In addition, the Pa993D SDI-12 submersible depth sensor has a built-in surge protection circuit to moderate the effects of electrical transients caused by nearby lightning strikes and power supply fluctuations.

Ideal applications of the SDI-12 depth sensor
The Pa993D SDI-12 has a compact diameter of only 23mm making it ideal for V-notch weir flow measurements. Plus, its high accuracy and optional 0.1% or 0.06% higher accuracy makes it a front runner in laboratory & research testing.
* Environmental Monitoring
* V-Notch Weir Flow Measurement
* Rivers, Reservoirs and Boreholes
* Laboratory & Research Testing
* Telemetry and Data Logging
* Flood Defence Monitoring and Research
* Academic Research

So, for an intelligent SDI-12 submersible depth sensor contact us today on (+44) 0118 981 7339 or email Applied Measurements.

More information >>


About Applied Measurements Ltd
Applied Measurements Limited offers a comprehensive selection of transducers based on strain gauge technology. Our product range includes sensors to measure load, pressure, torque and displacement. In addition, a custom transducer design service and strain gauge bonding facilities are also available.
To support the transducer range, a variety of analogue and digital instrumentation is available including high resolution, high speed and RS232/485 equipped signal conditioners and indicators, as well as portable battery powered indicators with integral data-logging, enabling us to offer complete systems with calibration traceable to UKAS standards.
In addition to our comprehensive range of 'standard' transducers, we also have the capability to design, develop and manufacture custom devices to meet specific needs. Our expertise is based on bonded strain gauge technology, which is carried across our complete line of transducers. Our involvement in your project can be at any stage, from development and design, through prototypes, testing and into full production.

For more information, please contact :-

Applied Measurements Ltd.
Tel: +44(0)118 981 7339
Fax: +44(0)118 981 9121
Email:
info@appmeas.co.uk
Website: https://.appmeas.co.uk

August 2020
