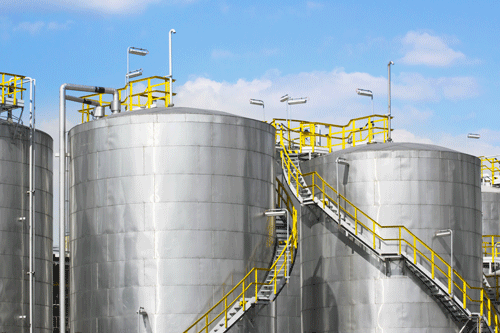

Measuring Water Bottom in Fuel Tanks

Drexelbrook's RF Admittance level transmitter Universal IV can be used to provide water level information to a fuel management inventory system so that net gallons of Petroleum can be computed accurately. It can also be used for leak detection, where any unscheduled decrease in water level indicates a leak in the tank bottom.

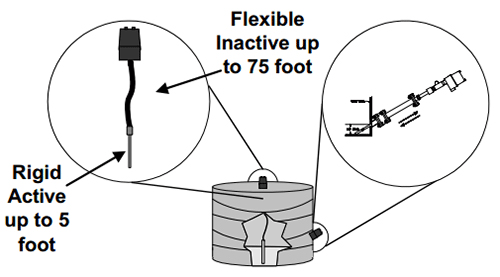

The signal can be used to control automatic water draw-off. For installation convenience, the intrinsically-safe sensing element can be mounted through a side wall of the tank or through the roof. The specific model and measuring area (active length) of the sensing element should be specified to be consistent with the expected maximum height of the water level, mounting considerations and mounting tolerances.

Final calibration can be done quickly and accurately with a known water level on the sensing element after installation. There are no moving parts to break or wear out, and materials of construction resist corrosion.

The transmitter is available with Honeywell™ or HART smart protocols or two-wire Analog 4-20mA output, and is intrinsically safe when used with an approved power supply. World Wide Hazard Certifications are available.

Learn more about the Universal IV level transmitter for water bottoms

U.S. Gauge is one of the world's leading suppliers of high quality, competitively prices pressure gauges, diaphragm seals, temperature gauges, and thermowell fittings. Founded in 1904, U.S. Gauge's product line includes a wide range of pressure gauges, from vacuum to 23,000 psi, in single or dual scale dials. Gauge sizes range from 1.5" to 6", with brass, 316 stainless steel, or Monel internals. For more information visit

AMETEK Factory Automation is one of the world's leading manufacturers and developers of process position feedback solutions within linear and rotary position feedback.
The company offers the most complete line of automation products for sensing the position of mechanical motion gear in locks and dams, cranes, steel mills, packaging systems, lumber mills, gantries, bridges and more. If it moves, it's tracked with absolute accuracy by our industry-leading rotary and linear sensors.

For more information, please contact:

Ametek STC
Gydevang 32-34, DK-3450 Alleroed, Denmark
TEL: +45 4816 8000

April 2019
