Bringing Advanced Simplicity to a Multi-function Process Calibrator

Process signals are crucial in various industries, from controlling valves, switches, or lights to measuring pressure in a pipe to calibrating temperature in a bakery oven. With something so important used everywhere, ensuring that these process signals remain accurate is essential. Users have multiple choices on the calibration equipment they use, but one of the most important factors to consider is ease-of-use.

Because multiple process signals may be used, including volts, millivolts, amps, or milliamps, and each of these may have large range differences, most users turn to a multi-function calibrator to satisfy all situations. However, as the options increase, the instrument's complexity tends also to increase. For novice users, a task seemingly as simple as connecting the instrument to the signal may prove difficult.

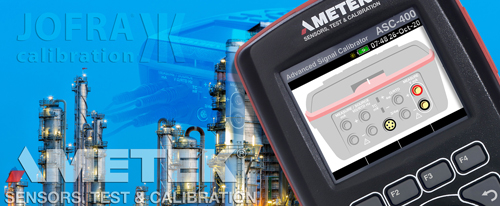

The JOFRA ASC-400 Advanced Signal Calibrator has a solution with its new connection assistant. The ASC-400 now includes a built-in help function that offers a graphical solution to exactly how to connect the ASC-400s current set-up. If the measurement parameters change (from V to mA, for example), the connection assistant screen will change. Use the new feature to reduce errors and wasted time significantly.

The ASC-400 Multifunction Process Calibrator reads and sources RTD, Thermocouple, Current, Voltage, Frequency, Resistance, and Pulse Train Output. It combines features such as percent error calculation, scaling, leak-testing, and switch test calibrating into one handheld calibrator. The large full-color display, numerical keypad with a cursor, and function keys help simplify use.

Combine the ASC-400 with an APM CPF pressure module to calibrate gauge or absolute pressure. If temperature calibration is needed, combine the ASC-400 with a dry-block calibrator

About AMETEK STC and JOFRA AMETEK STC manufactures and supplies calibration instruments for temperature, pressure, and process signals under JOFRA and Crystal brands. JOFRA signal calibrators are known worldwide for their accuracy, reliability, and ease-of-use. For more information, visit

About U.S. Gauge
U.S. Gauge is one of the world's leading suppliers of high quality, competitively priced pressure gauges, diaphragm seals, temperature gauges, level transmitters, and thermowell fittings. Founded in 1904, U.S. Gauge produces a wide range of pressure gauges, from vacuum to 23,000 psi, in single or dual scale dials. Gauge sizes range from 1.5 inch to 6 inches, with brass, 316 stainless steel, or Monel internals.

For more information, please contact:

Ametek STC
Gydevang 32-34, DK-3450 Alleroed, Denmark
Tel: +45 4816 8000
Email :

Contact: Henrik Larsen,
Contact: Sean Nielson,

February 2021
