Asset Instruments Engineering - PRODUCT NEWS






AS200501 - 3-Wire Ultra-Small Bridge Amplifier

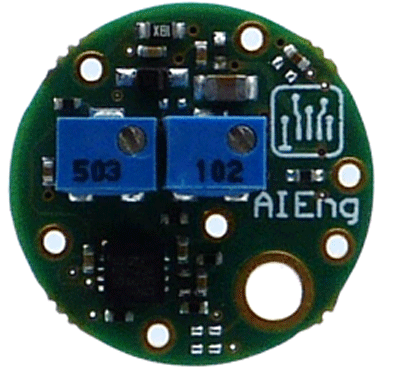

The AS200501 is a very flexible ultra-compact board for 3-wire systems providing a current output (typically 4-20mA, but can be configured to virtually any linear gradient i.e. 0.2mA to 8.2mA, or even with mid-zero of 12mA for compression / tension transducers), designed to be mounted directly with the transducer.

The unit has individual multi-turn potentiometers for the precise setting of Zero and Span. The inputs provide EMI-/RF-suppression along with a low-pass filter. Transducer wires can be easily connected to the board by soldering.

Features

* Wide range power supply 8V-30V

* Stabilised bridge excitation voltage

* Bridge resistance 350 Ohm (or greater)

* Bridge sensitivity 0.2mV/V - 10mV/V

* Ultra-small 18mm diameter, 7mm height

* Fast calibration procedure

* Reverse-polarity protection

Applications

* Load-Cell Industrial Weighing

* Strain-gauge Load Testing & Monitoring

* Overload Protection Systems



For more information, please contact:-

Asset Instruments Engineering Ltd.
The Workshop, 32-40 Tontine Street, Folkestone CT20 1JU

Tel: +44(0) 7763 740906
Email:
info@aieng.co.uk
Web:
www.aieng.co.uk

November 2020
